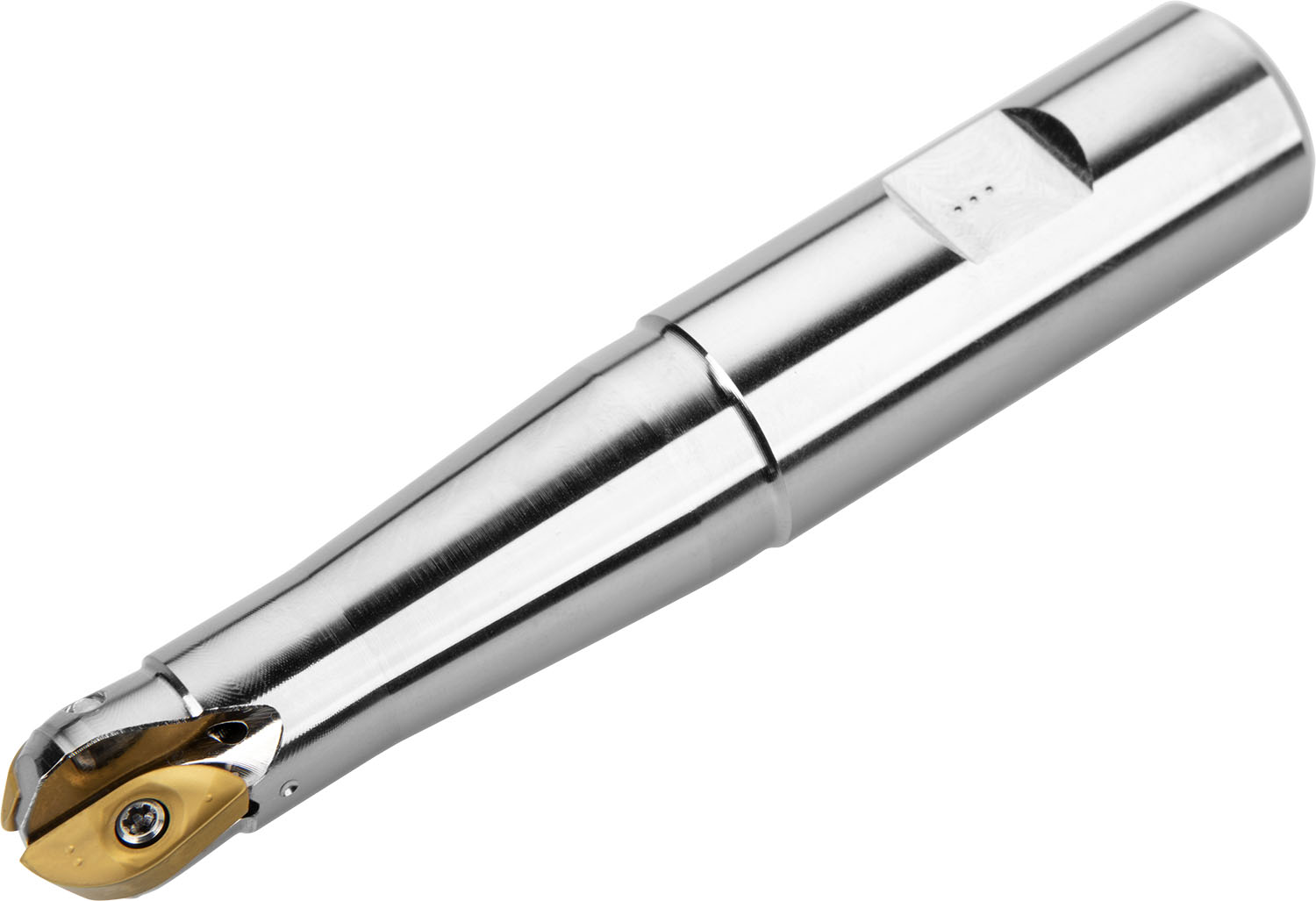

Pramet 20L2R050B25-SZP20-C | 20 mm Diameter x 4.213" OAL Indexable Ball Nose End Mill

$360.00 $303.26
(You save $56.74)
Brand:
Pramet
interval quantity:
1
SKU:
23143868
UPC:
Weight:
0.67 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

Copy end mill with double negative geometry which utilises 2 off ZP 20.. single-sided inserts, cutting diameter 20 mm with 25 mm Weldon shank according to DIN 1835B, 50 mm functional and 107 mm overall length, through coolant for copy milling with a maximum depth of cut of 17,9 mm.

Product Specifications
EDP Number6761637
Peripheral Effective Cutting Edge Count2
Insert Index Count2
Coolant Supply Property1
Axial Rake Angle-10
Radial Rake Angle0
Maximum Ramping Angle17.9
Max Rotational Speed24000
Connection Diameter (mm)25 mm
Connection Diameter (Inch)0.984"
Max Cutting Diameter (mm)20 mm
Overall Length (mm)
Overall Length (Inch)
Usable Length (mm)50 mm
Max Usable Length (mm)35.1 mm
Functional Length (mm)75.5 mm
Country of originCzech Republic
