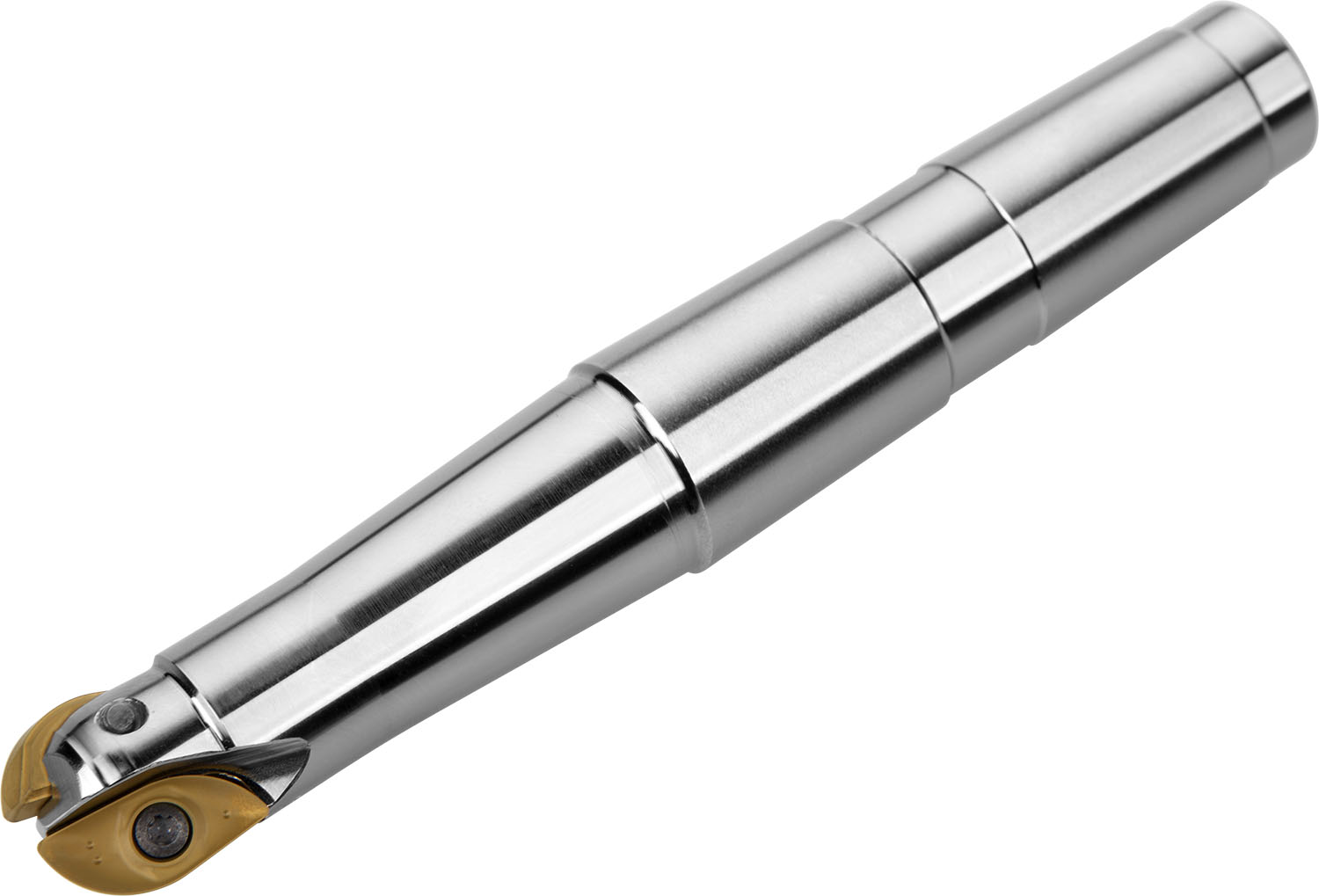

Copy end mill with double negative geometry which utilises 2 off ZP 20.. single-sided inserts, cutting diameter 20 mm with MT 3 morse taper shank according to DIN 228-1A, 181 mm overall length for copy milling with a maximum depth of cut of 17,9 mm.
Product Specifications
| EDP Number | 6761655 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | 0 |
| Maximum Ramping Angle | 17.9 |
| Max Rotational Speed | 24000 |
| Connection Size Code Machine Side | 3 |
| Max Cutting Diameter (mm) | 20 mm |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Max Usable Length (mm) | 77.4 mm |
| Functional Length (mm) | 100 mm |
