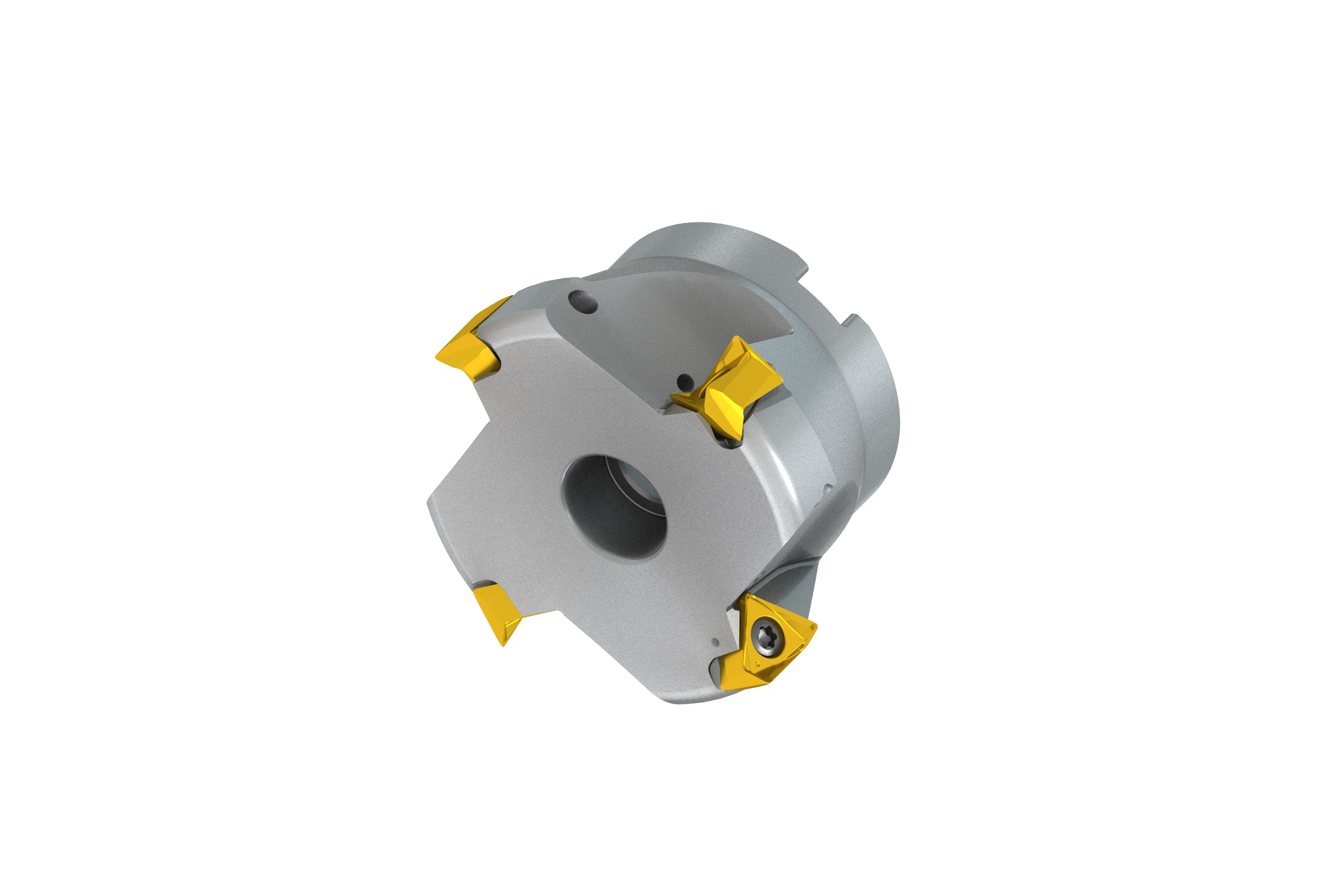

Shoulder face mill with double negative geometry which utilises 4 of TNGX 1606.. double-sided inserts, cutting diameter 2.500" with 90 Degree approach angle and connection bore according to DIN 8030-A, , through coolant and differential pitch for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes.
Product Specifications
| EDP Number | 8021165 |
| Peripheral Effective Cutting Edge Count | 4 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -9.5 |
| Radial Rake Angle | -16 |
| Connection Diameter (mm) | 19.1 mm |
| Connection Diameter (Inch) | 0.75" |
| Counterbore Diameter Connection Bore (Inch) | 0.63" |
| Keyway Width (Inch) | 0.323" |
| Keyway Depth (Inch) | 0.193" |
| Cutting Diameter (mm) | 63.5 mm |
| Cutting Diameter (Inch) | 2.5" |
| Functional Length (Inch) | 1.575" |
| Country of origin | Czech Republic |
