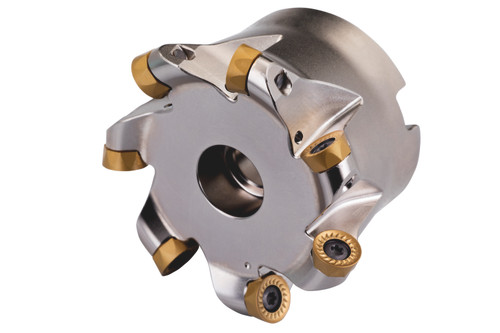

Copy face mill with double negative geometry which utilises 6 off RCMT 10T3MO.. single-sided inserts, cutting diameter 2.500'' with .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling, copy milling, ramping, helical milling and plunge milling with a maximum depth of cut of .197''.
Product Specifications
| EDP Number | 7455531 |
| Peripheral Effective Cutting Edge Count | 6 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -1.8 |
| Max Rotational Speed | 13200 |
| Connection Diameter (mm) | 19.1 mm |
| Connection Diameter (Inch) | 0.75" |
| Counterbore Diameter Connection Bore (Inch) | 0.63" |
| Keyway Width (Inch) | 0.321" |
| Keyway Depth (Inch) | 0.193" |
| Cutting Diameter (mm) | 53.5 mm |
| Cutting Diameter (Inch) | 2.106" |
| Max Cutting Diameter (Inch) | 2.5" |
| Functional Length (Inch) | 1.575" |
| Country of origin | Czech Republic |
