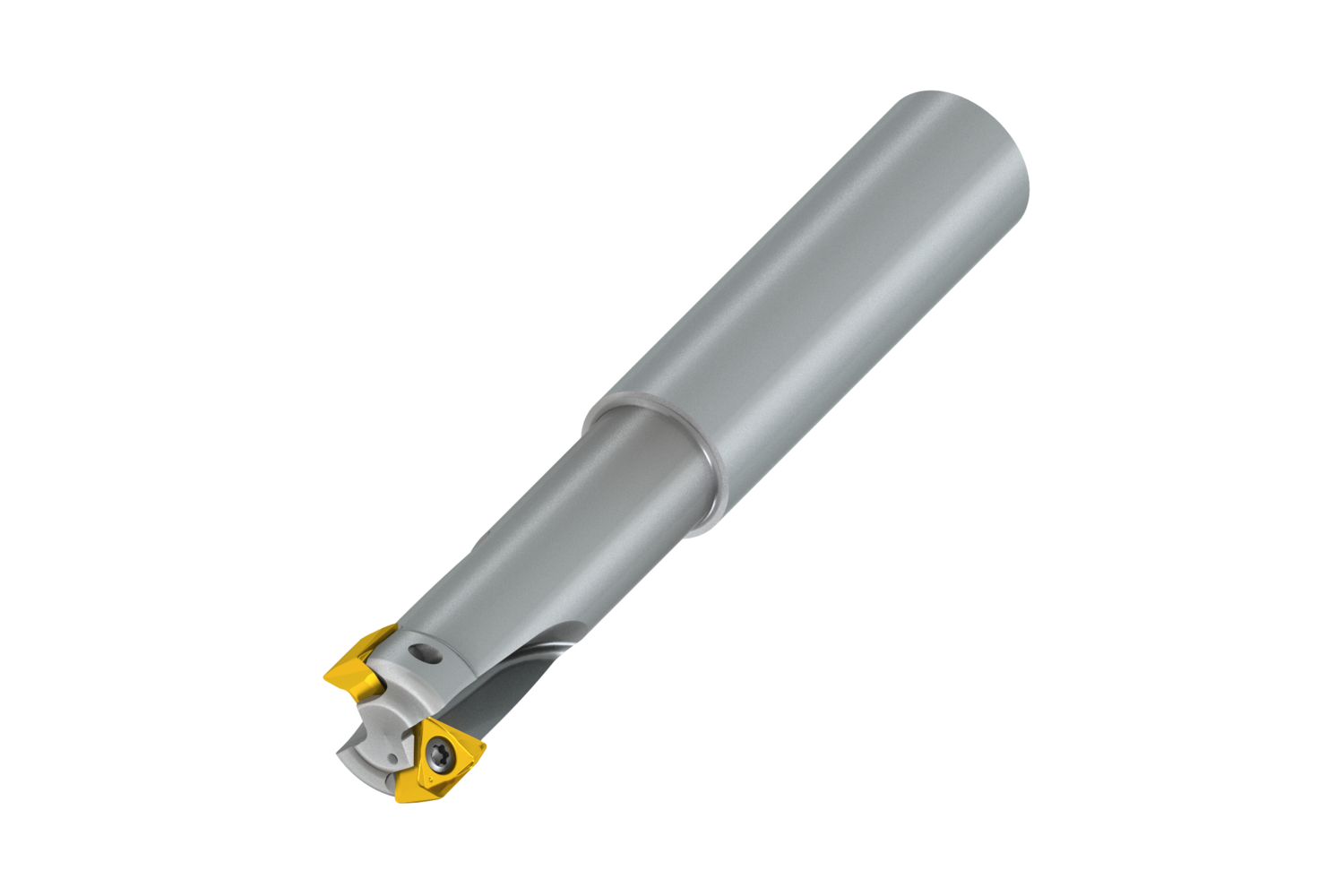

Shoulder face mill with double negative geometry which utilises 2 of TNGX 1606.. double-sided inserts, cutting diameter 25 mm with 90° approach angle and 25 mm parallel shank according to DIN 1835A, 80 mm usable and 170 mm overall length, through coolant for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes.
Product Specifications
| EDP Number | 8052330 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -9.5 |
| Radial Rake Angle | -18.5 |
| Max Rotational Speed | 20000 |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Cutting Diameter (mm) | 25 mm |
| Cutting Diameter (Inch) | 0.984" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 80 mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
1
