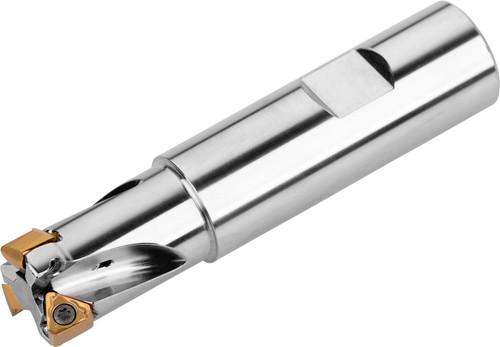

Shoulder face mill with double negative geometry which utilises 3 off TNGX 1004.. double-sided inserts, cutting diameter 25 mm with 90° approach angle and 25 mm Weldon shank according to DIN 1835B, 42 mm functional and 100 mm overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0 mm.
Product Specifications
| EDP Number | 7178496 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -11 |
| Radial Rake Angle | -16 |
| Max Rotational Speed | 24700 |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Cutting Diameter (mm) | 25 mm |
| Cutting Diameter (Inch) | 0.984" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 42 mm |
