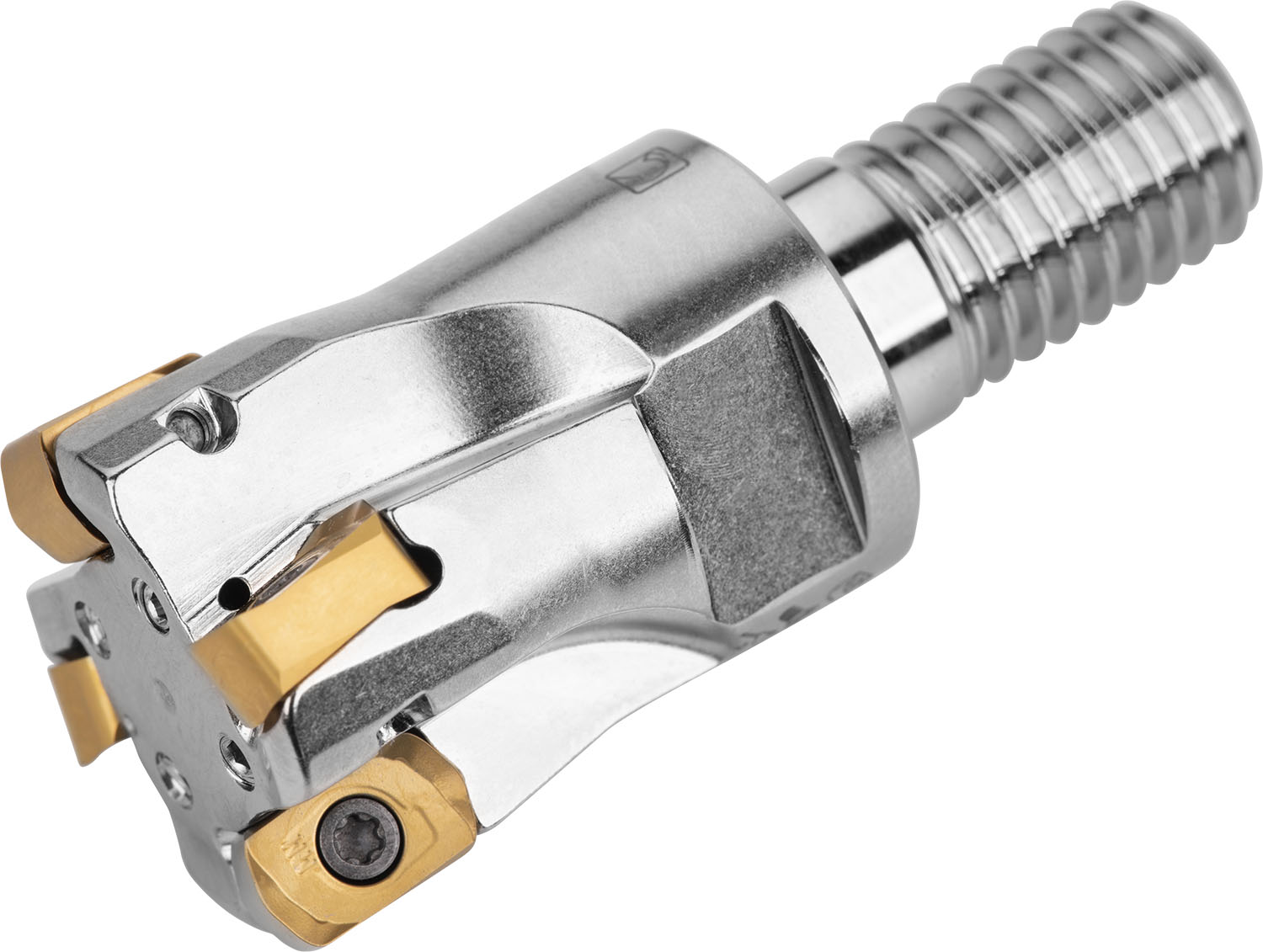

High feed cutter with positve/negative geometry which utilises 5 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 25 mm with 20 Degree approach angle and M12 threaded shank for standard modular tool-holders, 33 mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.0 mm.
Product Specifications
| EDP Number | 7253578 |
| Peripheral Effective Cutting Edge Count | 5 |
| Insert Index Count | 5 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | -9 |
| Max Rotational Speed | 24800 |
| Connection Diameter (mm) | 12.5 mm |
| Connection Diameter (Inch) | 0.492" |
| Cutting Diameter (mm) | 18.4 mm |
| Max Cutting Diameter (mm) | 25 mm |
| Cutting Diameter (Inch) | 0.724" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 33 mm |
| Thread Diameter Size | M12 |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
