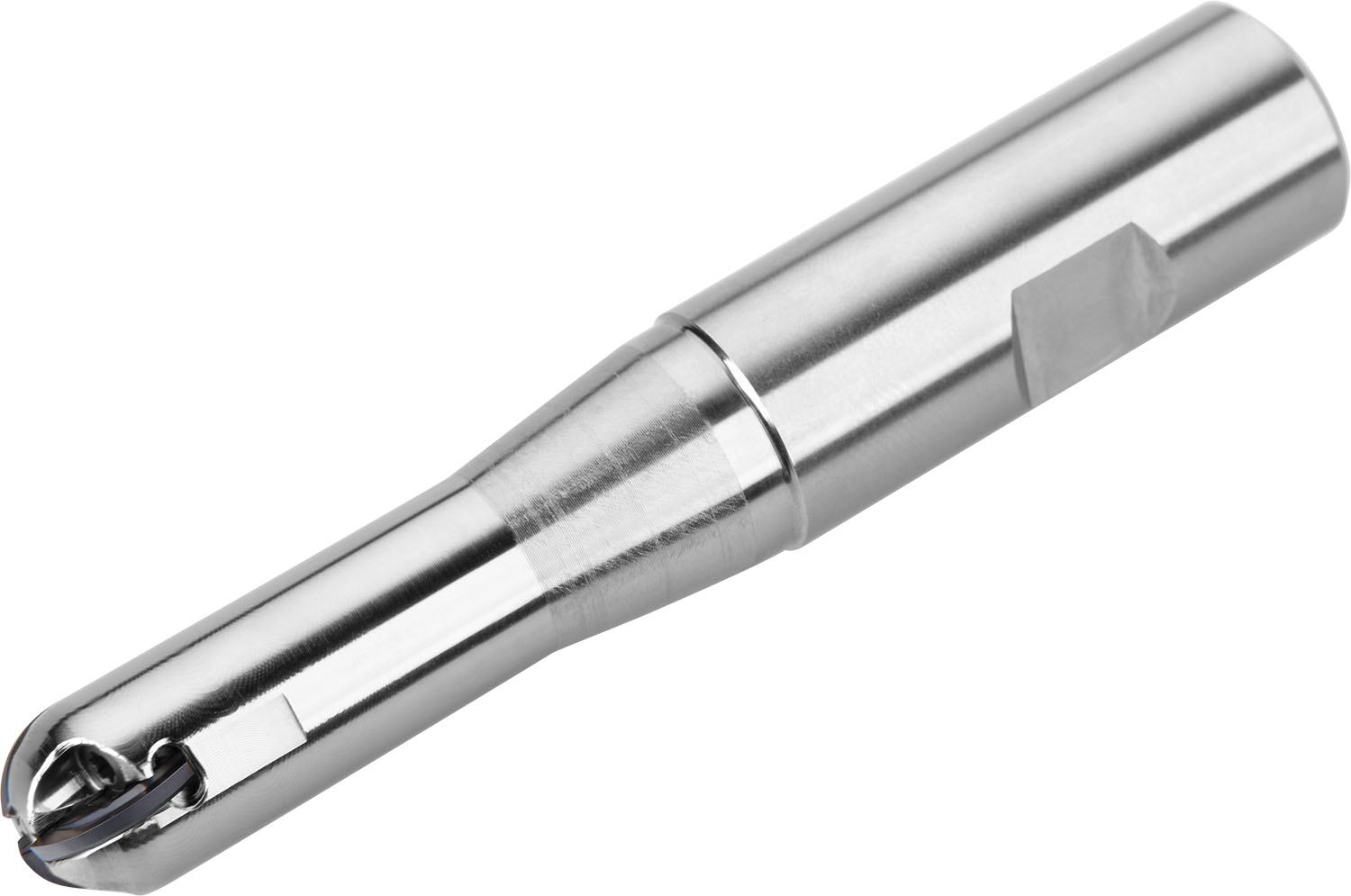

Copy end mill with double negative geometry which utilises 3 off XP 25.. single-sided inserts, cutting diameter 25 mm with 25 mm Weldon shank according to DIN 1835B, 80 mm functional and 137 mm overall length for copy milling with a maximum depth of cut of 12,5 mm.
Product Specifications
| EDP Number | 6761734 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Maximum Depth of Cut (mm) | 12.5 mm |
| Axial Rake Angle | -5 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 20000 |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Max Cutting Diameter (mm) | 25 mm |
| Overall Length (mm) | 257 mm |
| Overall Length (Inch) | 10.118" |
| Usable Length (mm) | 80 mm |
| Functional Length (mm) | 105 mm |
