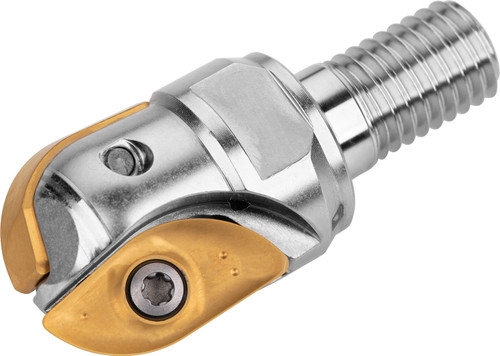

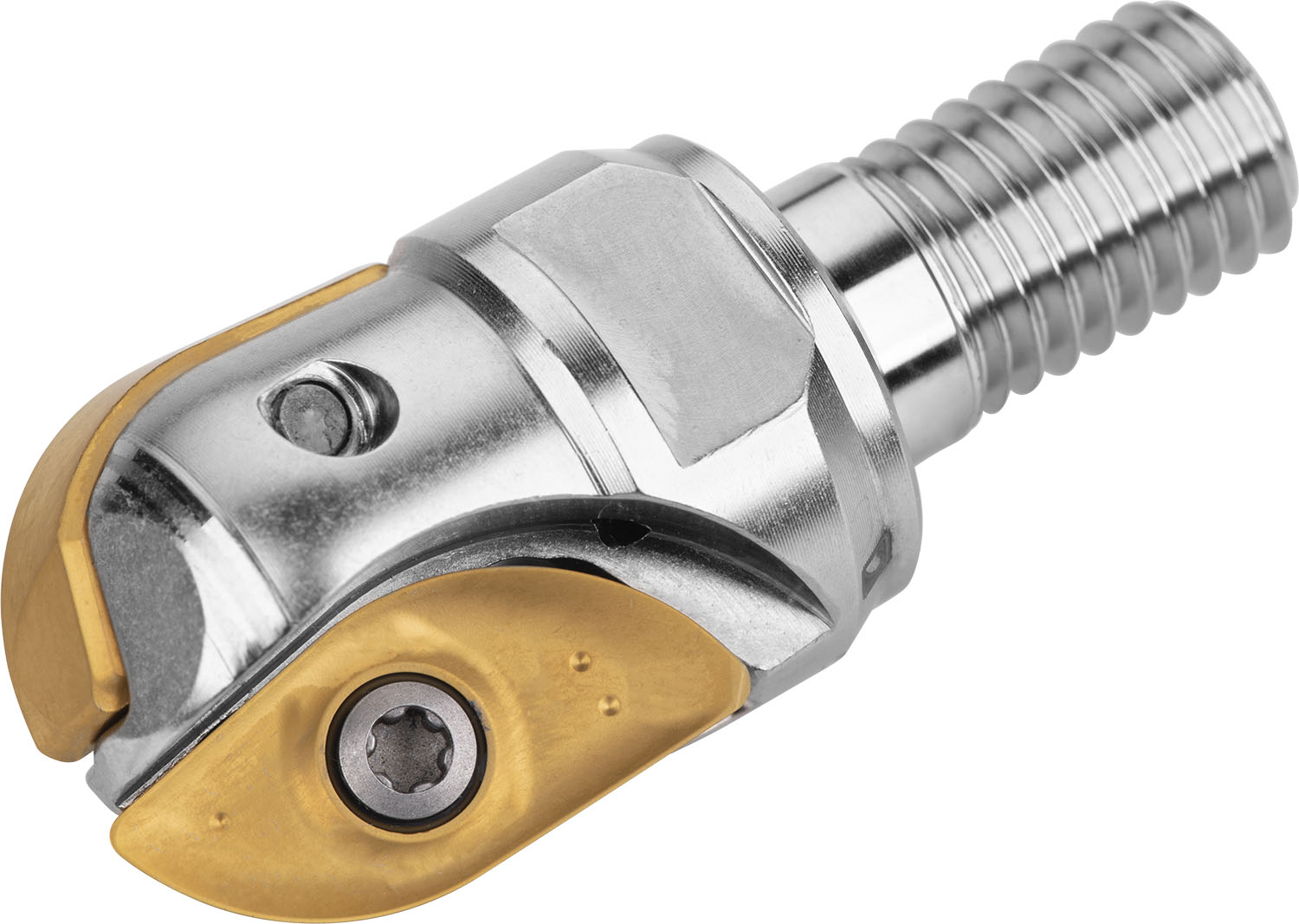

Copy end mill with double negative geometry which utilises 2 off ZP 25.. single-sided inserts, cutting diameter 25 mm with M12 threaded shank for standard modular tool-holders, 35 mm protrusion length, through coolant for copy milling with a maximum depth of cut of 22,3 mm.
Product Specifications
| EDP Number | 6761665 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | 0 |
| Maximum Ramping Angle | 22.3 |
| Connection Diameter (mm) | 12.5 mm |
| Connection Diameter (Inch) | 0.492" |
| Max Cutting Diameter (mm) | 25 mm |
| Functional Length (mm) | 35 mm |
| Thread Diameter Size | M12 |
