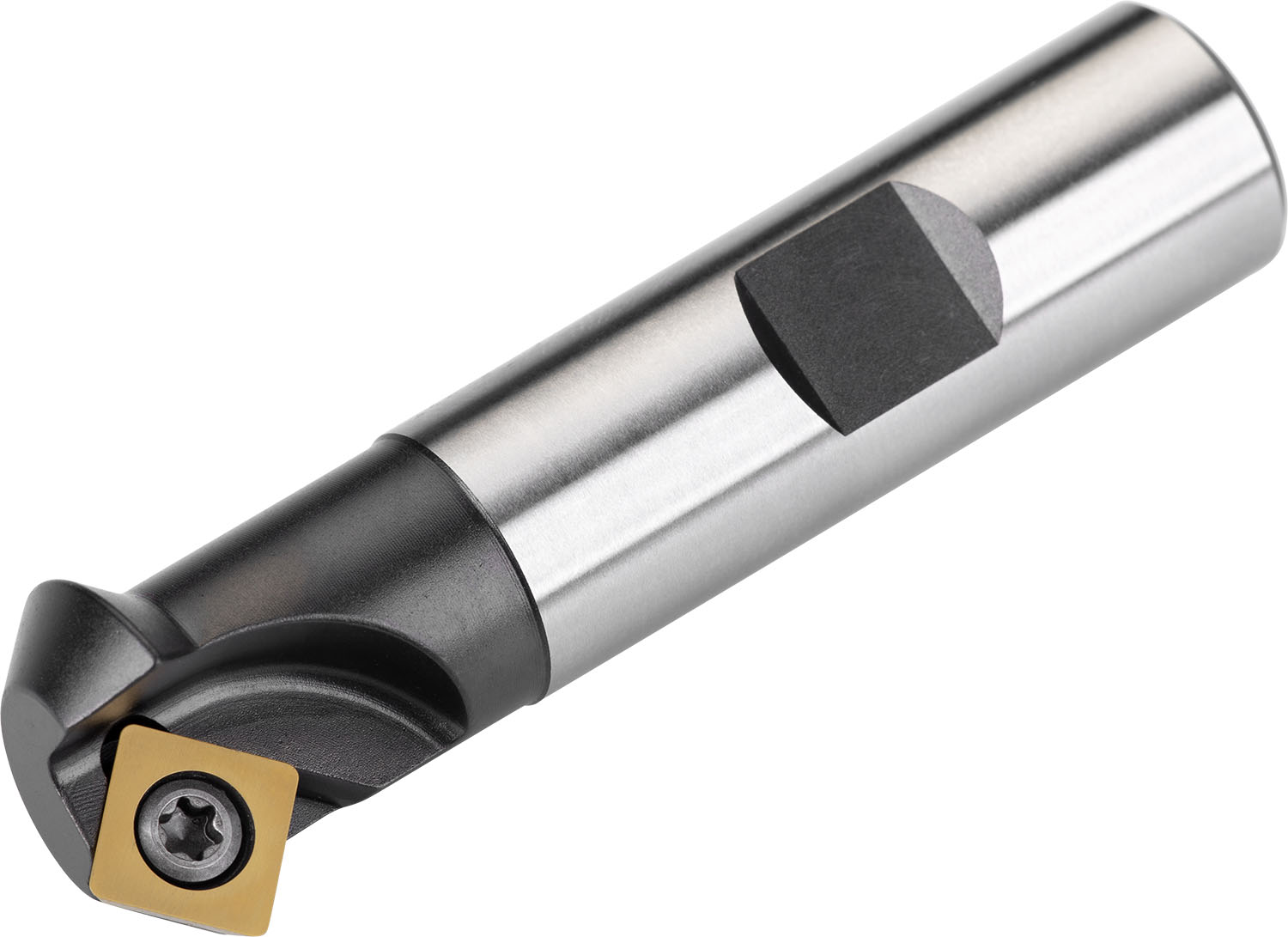

Chamfer mill with double negative geometry which utilises 3 off SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter 25 to maximum 37 mm with 45° approach angle and 25 mm Weldon shank according to DIN 1835B, 98 mm overall length for chamfering with a maximum depth of cut of 8.0 mm.
Product Specifications
| EDP Number | 6757764 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 25800 |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Cutting Diameter (mm) | 25 mm |
| Max Cutting Diameter (mm) | 37 mm |
| Cutting Diameter (Inch) | 0.984" |
| Overall Length (mm) | 170 mm |
| Overall Length (Inch) | 6.693" |
| Usable Length (mm) | 42 mm |
