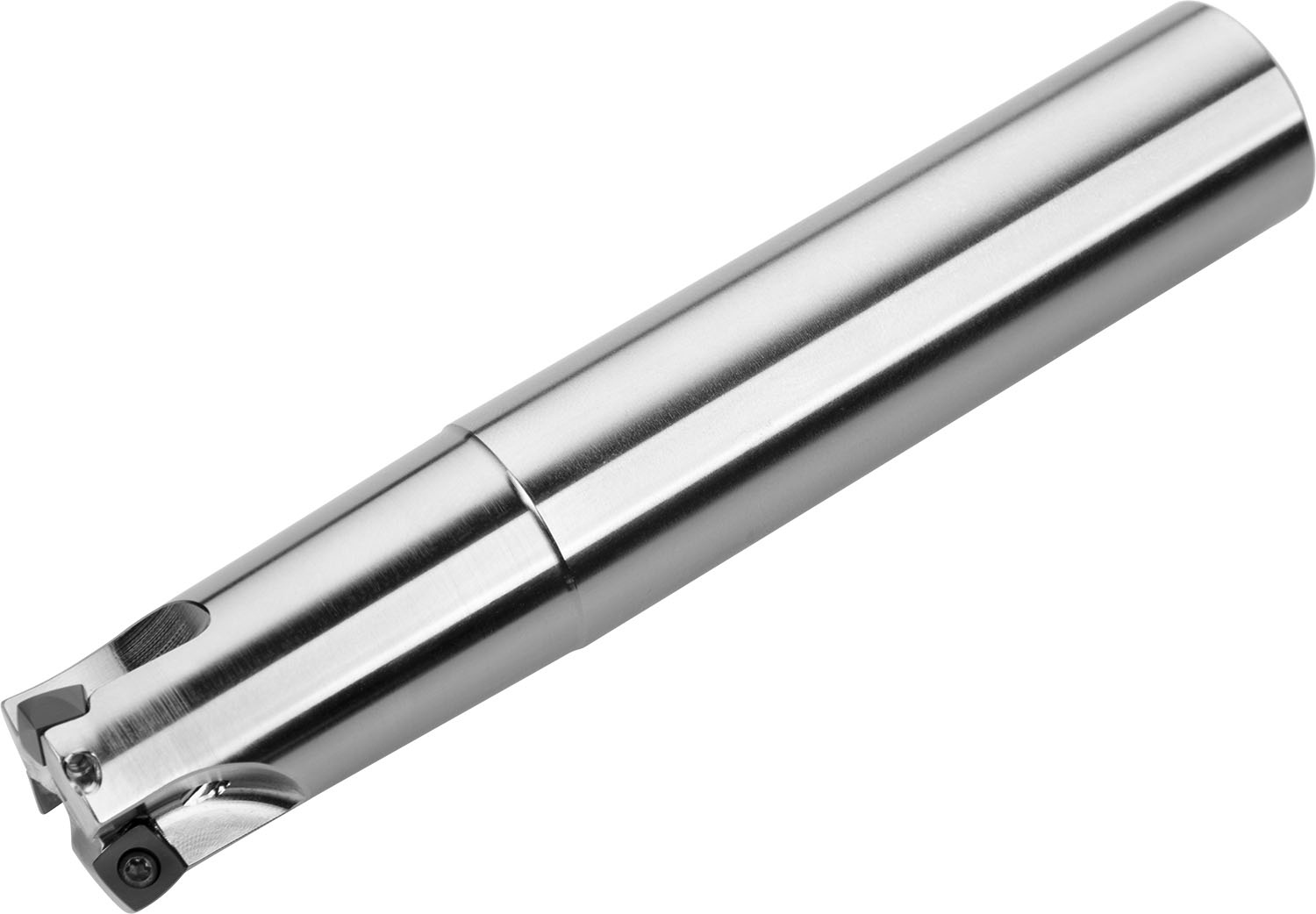

Chamfer mill with double negative geometry which utilises 3 off SOMT 09T3.. single-sided inserts, cutting diameter 25 to maximum 37.8 mm with 45 Degree approach angle and 25 mm Weldon shank according to DIN 1835B, 125 mm overall length, through coolant for chamfering with a maximum depth of cut of 4.5 mm.
Product Specifications
| EDP Number | 6758334 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 21300 |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Cutting Diameter (mm) | 25 mm |
| Max Cutting Diameter (mm) | 37.8 mm |
| Cutting Diameter (Inch) | 0.984" |
| Overall Length (mm) | 250 mm |
| Overall Length (Inch) | 9.843" |
| Usable Length (mm) | 42 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
