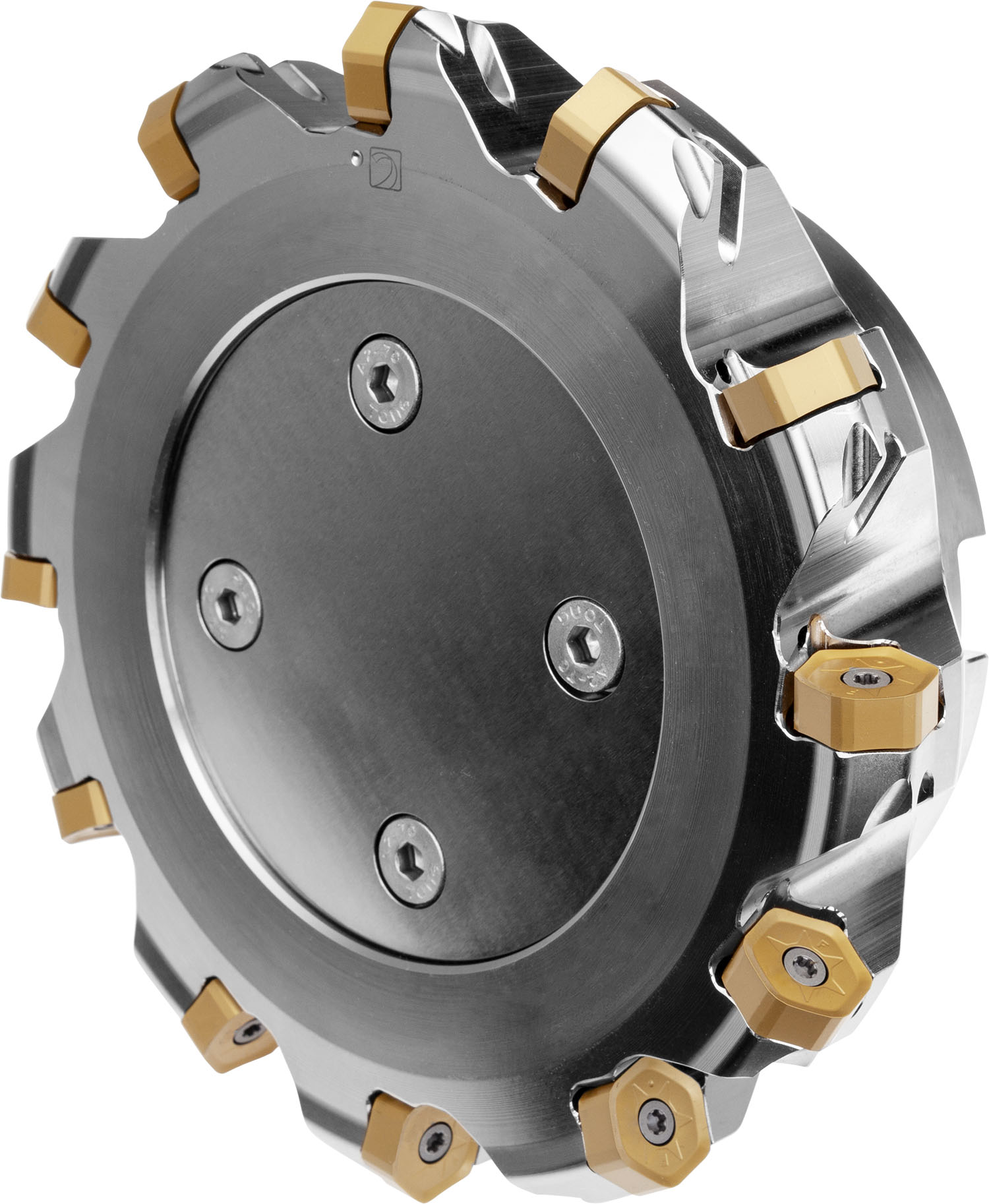

Face mill with double negative geometry which utilises 16 off HNGX 0906AN.. or XNGX 0906AN.. double-sided inserts, cutting diameter 315 to maximum 326.7 mm with 45° approach angle and 60 mm connection bore according to DIN 8030-C, 80 mm protrusion length, through coolant and differential pitch for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of 5.0 mm.
Product Specifications
| EDP Number | 7155956 |
| Peripheral Effective Cutting Edge Count | 16 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 16 |
| Coolant Supply Property | 1 |
| Tool Cutting Edge Angle | 45 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -7 |
| Max Rotational Speed | 3100 |
| Connection Diameter (mm) | 60 mm |
| Connection Diameter (Inch) | 2.362" |
| Keyway Width (mm) | 25.7 mm |
| Keyway Depth (mm) | 14 mm |
| Cutting Diameter (mm) | 315 mm |
| Max Cutting Diameter (mm) | 326.7 mm |
| Cutting Diameter (Inch) | 12.402" |
| Functional Length (mm) | 80 mm |
