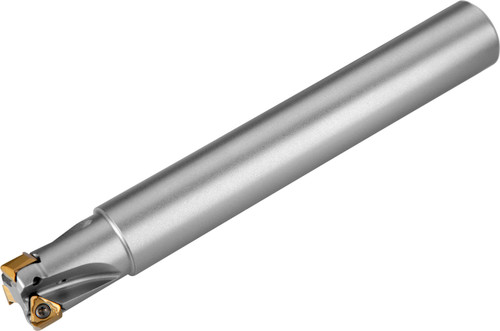

Shoulder mill with positve/negative geometry which utilises 3 off APKT 1604.. or APET 1604.. single-sided inserts, cutting diameter 32 mm with 90 Degree approach angle and 32 mm Weldon shank according to DIN 1835B, 50 mm functional and 100 mm overall length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0 mm.
Product Specifications
| EDP Number | 6758370 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 8 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 14800 |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Cutting Diameter (mm) | 32 mm |
| Cutting Diameter (Inch) | 1.26" |
| Overall Length (mm) | 195 mm |
| Overall Length (Inch) | 7.677" |
| Usable Length (mm) | 50 mm |
| Country of origin | Czech Republic |
