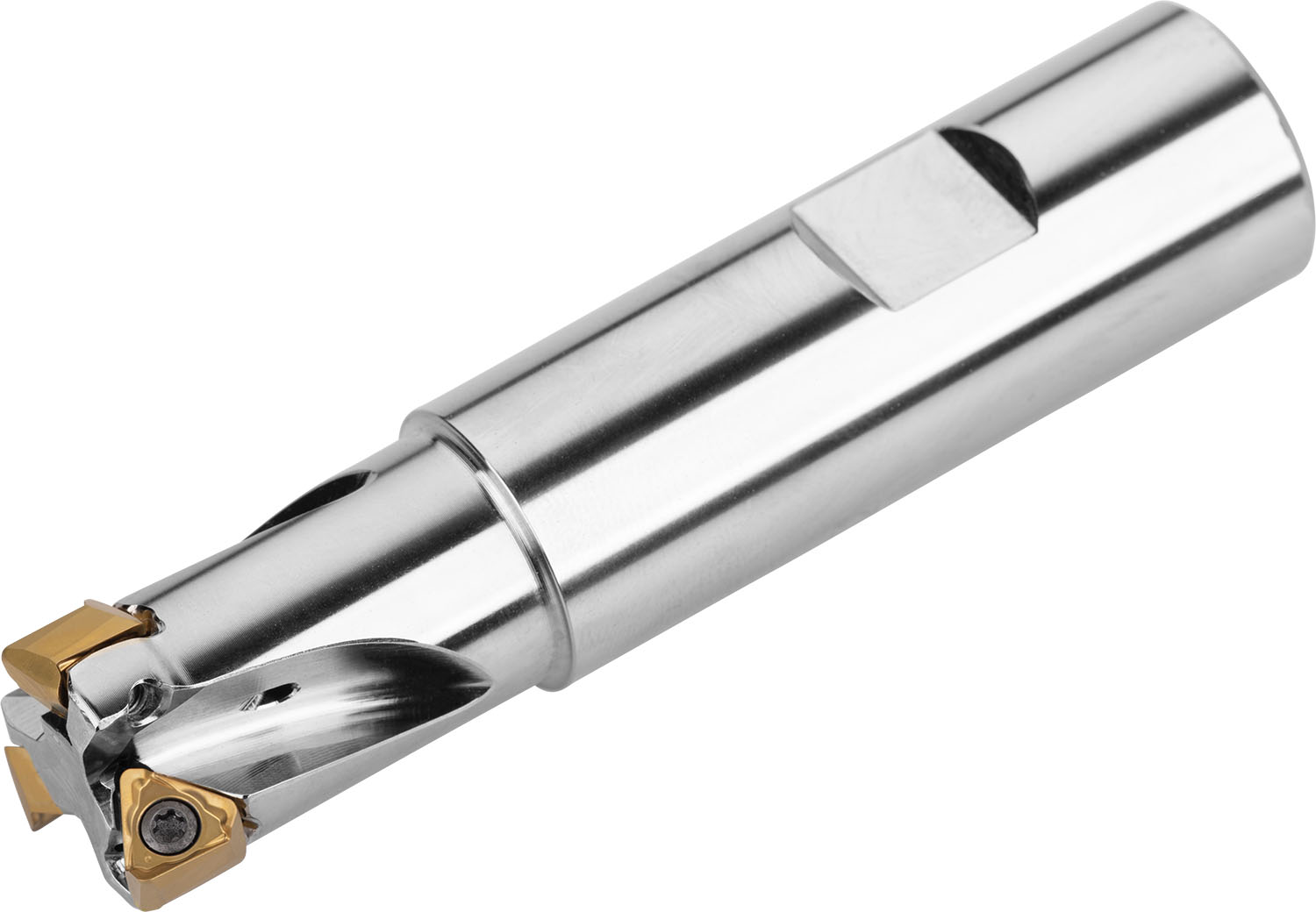

Shoulder face mill with double negative geometry which utilises 5 off TNGX 1004.. double-sided inserts, cutting diameter 32 mm with 90° approach angle and 32 mm Weldon shank according to DIN 1835B, 42 mm functional and 110 mm overall length, through coolant and differential pitch for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0 mm.
Product Specifications
| EDP Number | 7178499 |
| Peripheral Effective Cutting Edge Count | 5 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 5 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -11 |
| Radial Rake Angle | -16 |
| Max Rotational Speed | 21800 |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Cutting Diameter (mm) | 32 mm |
| Cutting Diameter (Inch) | 1.26" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 42 mm |
