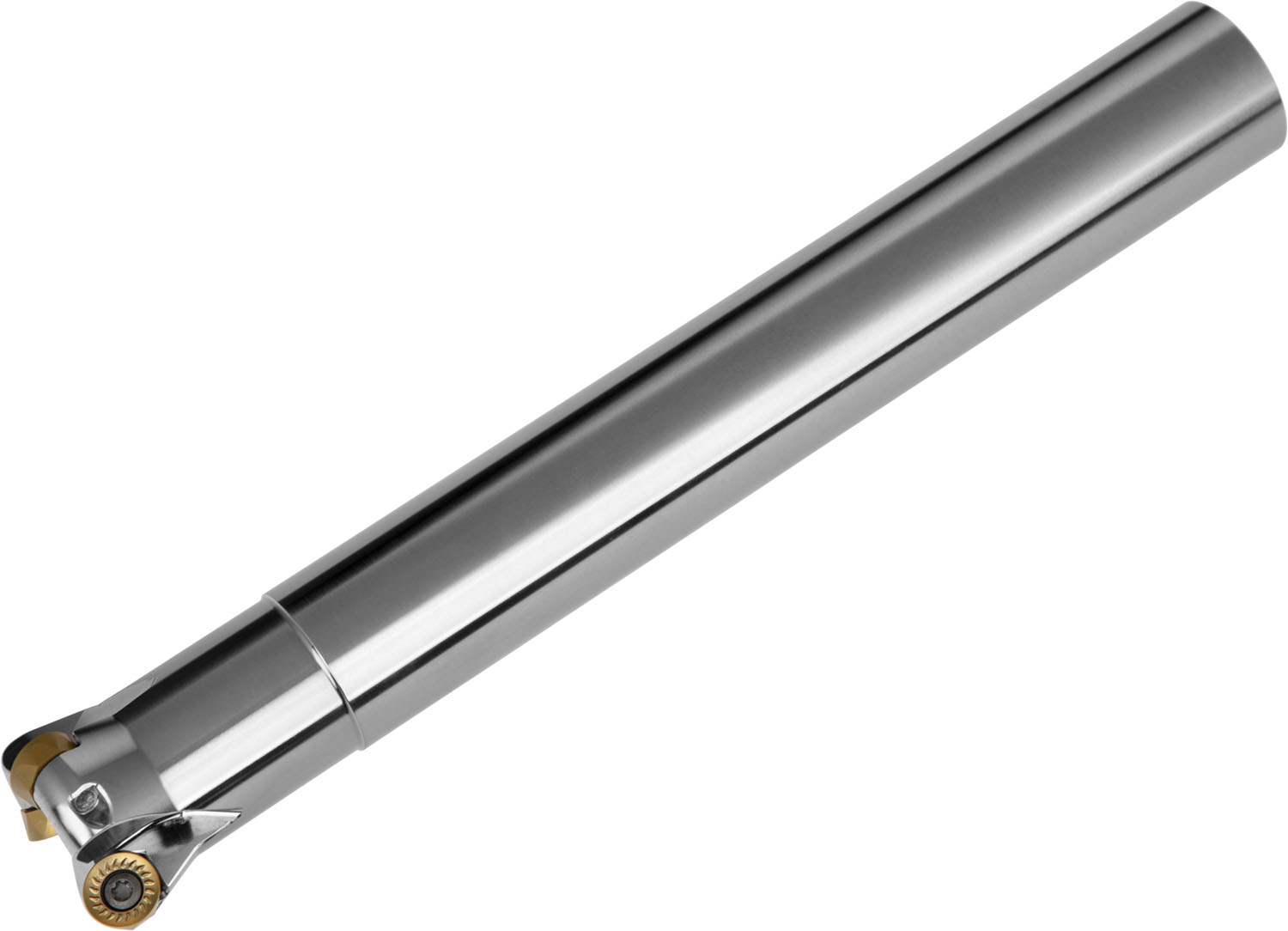

Copy face mill with double negative geometry which utilises 4 off RCMT 10T3MO.. single-sided inserts, cutting diameter 32 mm with 25 mm parallel shank according to DIN 1835A, 42 mm functional and 200 mm overall length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 5.0 mm.
Product Specifications
| EDP Number | 7444200 |
| Peripheral Effective Cutting Edge Count | 4 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -2.6 |
| Max Rotational Speed | 18500 |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Cutting Diameter (mm) | 22 mm |
| Max Cutting Diameter (mm) | 32 mm |
| Cutting Diameter (Inch) | 0.866" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 42 mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
