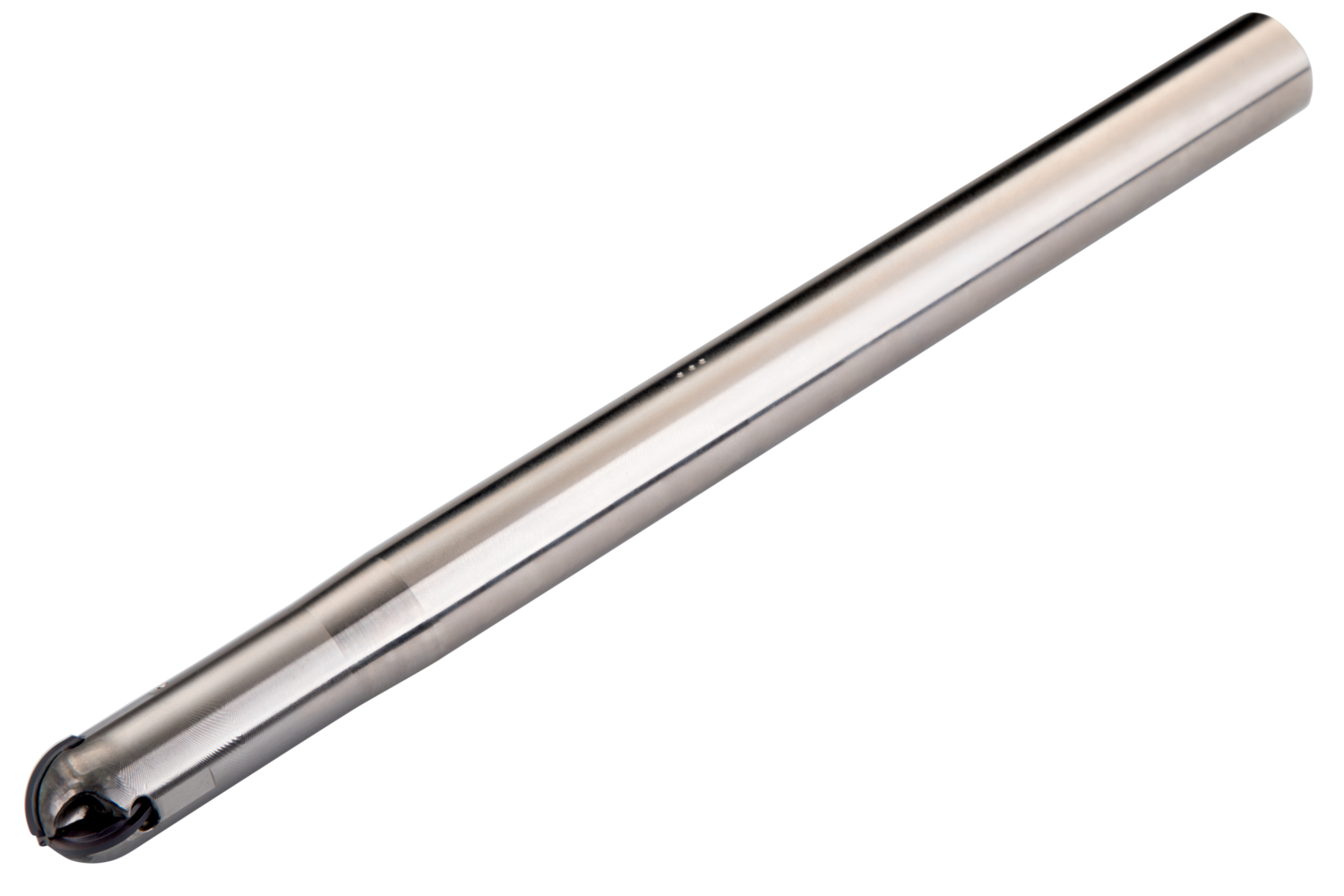

Copy end mill with double negative geometry which utilises 3 off XP 32.. single-sided inserts, cutting diameter 32 mm with 32 mm parallel shank according to DIN 1835A, 80 mm functional and 250 mm overall length for copy milling with a maximum depth of cut of 16 mm.
Product Specifications
| EDP Number | 6761735 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Maximum Depth of Cut (mm) | 16 mm |
| Axial Rake Angle | -5 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 15000 |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Max Cutting Diameter (mm) | 32 mm |
| Overall Length (mm) | 267 mm |
| Overall Length (Inch) | 10.512" |
| Usable Length (mm) | 80 mm |
