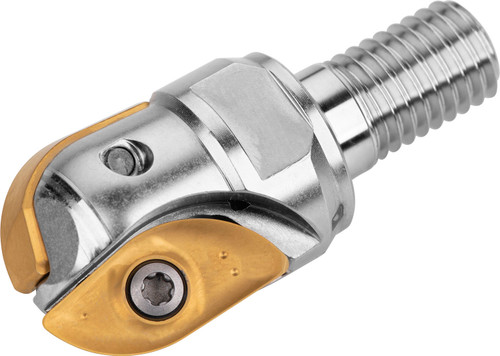

Copy end mill with double negative geometry which utilises 2 off ZP 32.. single-sided inserts, cutting diameter 32 mm with M16 threaded shank for standard modular tool-holders, 45 mm protrusion length, through coolant for copy milling with a maximum depth of cut of 27,9 mm.
Product Specifications
| EDP Number | 6761666 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | 0 |
| Maximum Ramping Angle | 27.9 |
| Connection Diameter (mm) | 17 mm |
| Connection Diameter (Inch) | 0.669" |
| Max Cutting Diameter (mm) | 32 mm |
| Functional Length (mm) | 45 mm |
| Thread Diameter Size | M16 |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
1
