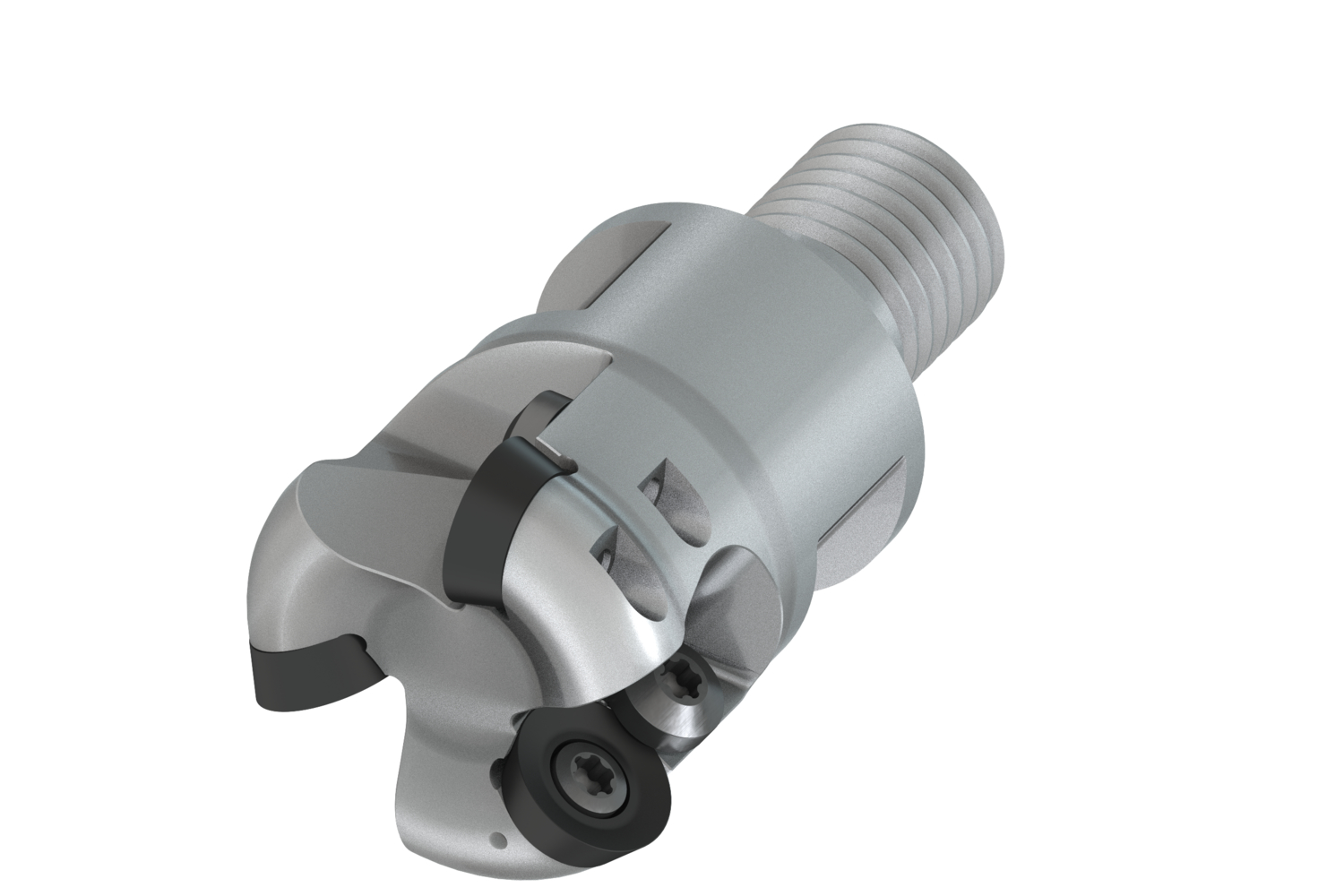

Copy face mill with double negative geometry which utilises 3 of RD.. 12T3MOT or RDHT 12T3MO-FA single-sided inserts, cutting diameter to maximum 35 mm with M16 threaded shank for standard modular tool-holders, 42 mm functional and 65 mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 3 mm.
Product Specifications
| EDP Number | 7999321 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Maximum Depth of Cut (mm) | 3 mm |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 18100 |
| Connection Diameter (mm) | 17 mm |
| Connection Diameter (Inch) | 0.669" |
| Hub Diameter (mm) | 29 mm |
| Cutting Diameter (mm) | 23 mm |
| Max Cutting Diameter (mm) | 35 mm |
| Cutting Diameter (Inch) | 0.906" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 42 mm |
| Thread Diameter Size | M16 |
| Clamping Type Code | System SC |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
1
