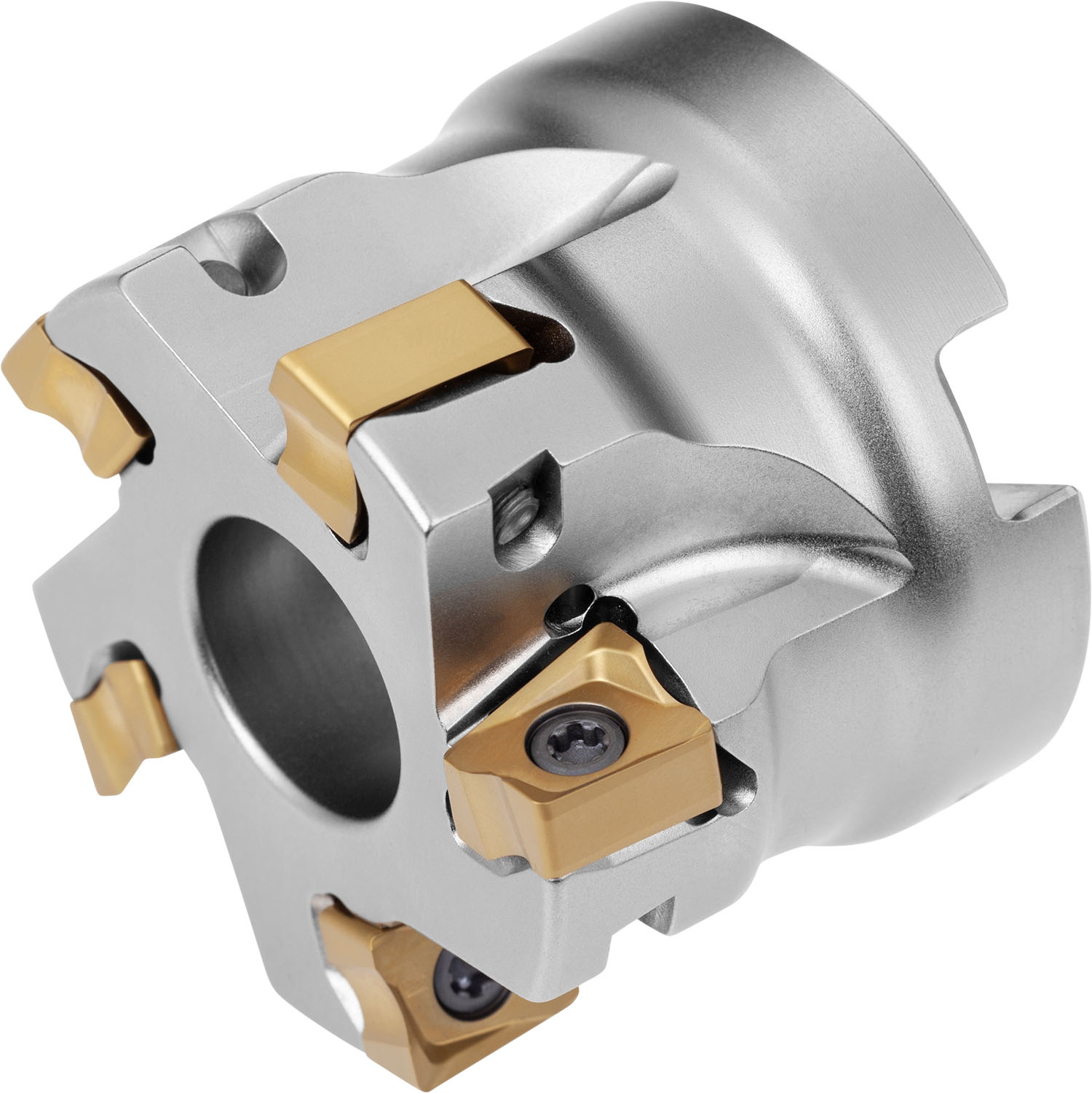

Shoulder mill with double negative geometry which utilises 6 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 4.000'' with 90° approach angle and 1.500'' connection bore according to DIN 8030-A, 1.969'' protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .354''.
Product Specifications
| EDP Number | 6793023 |
| Peripheral Effective Cutting Edge Count | 6 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -6 |
| Radial Rake Angle | -14 |
| Max Rotational Speed | 9800 |
| Connection Diameter (mm) | 38.1 mm |
| Connection Diameter (Inch) | 1.5" |
| Counterbore Diameter Connection Bore (Inch) | 1.26" |
| Keyway Width (Inch) | 0.63" |
| Keyway Depth (Inch) | 0.382" |
| Cutting Diameter (mm) | 101.6 mm |
| Cutting Diameter (Inch) | 4" |
| Functional Length (Inch) | 1.969" |
