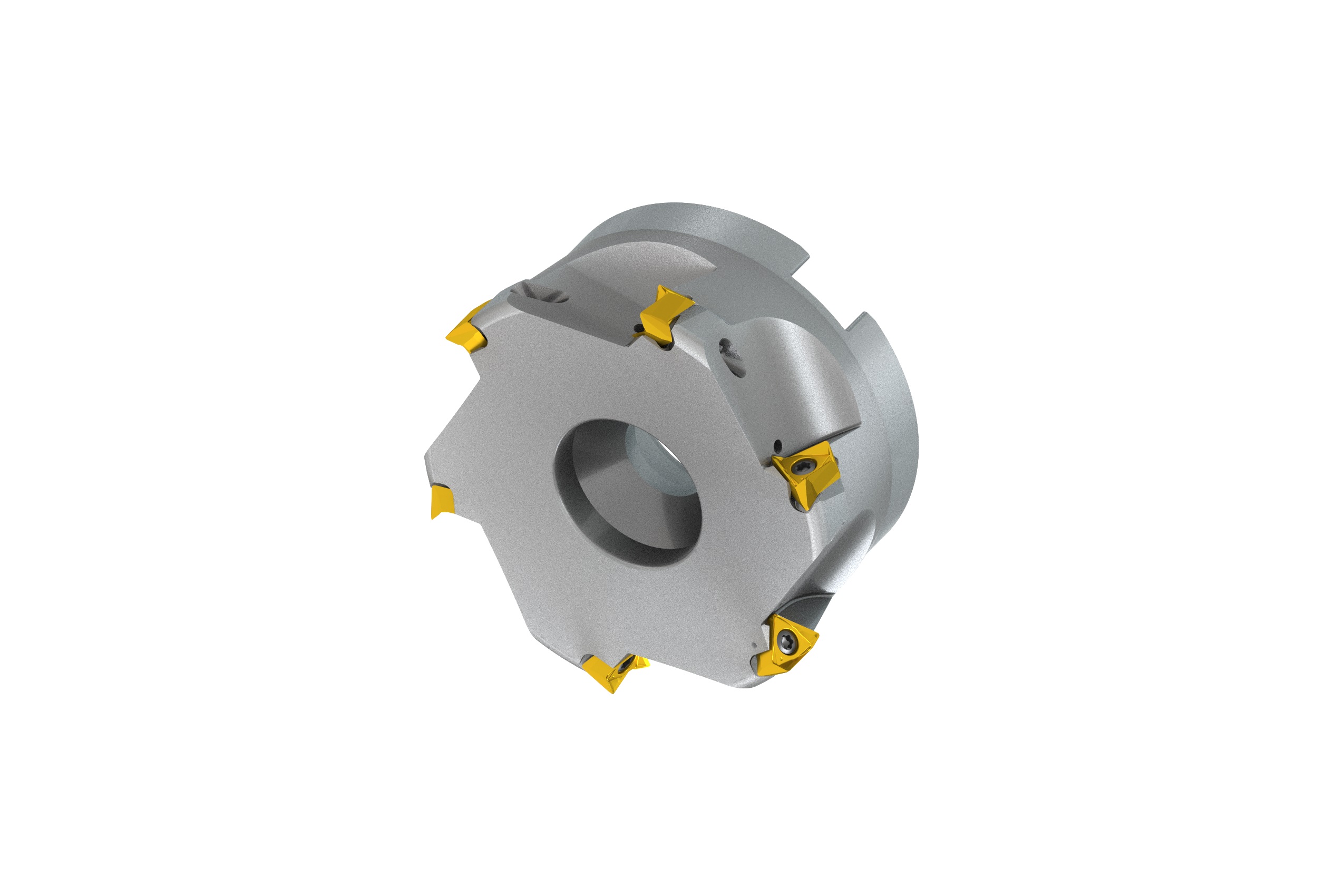

Shoulder face mill with double negative geometry which utilises 6 of TNGX 1606.. double-sided inserts, cutting diameter 4.000" with 90° approach angle and connection bore according to DIN 8030-A, , through coolant and differential pitch for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes.
Product Specifications
| EDP Number | 8021169 |
| Peripheral Effective Cutting Edge Count | 6 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -9.5 |
| Radial Rake Angle | -16 |
| Connection Diameter (mm) | 38.1 mm |
| Connection Diameter (Inch) | 1.5" |
| Counterbore Diameter Connection Bore (Inch) | 1.417" |
| Keyway Width (Inch) | 0.634" |
| Keyway Depth (Inch) | 0.382" |
| Cutting Diameter (mm) | 101.6 mm |
| Cutting Diameter (Inch) | 4" |
| Functional Length (Inch) | 1.969" |
