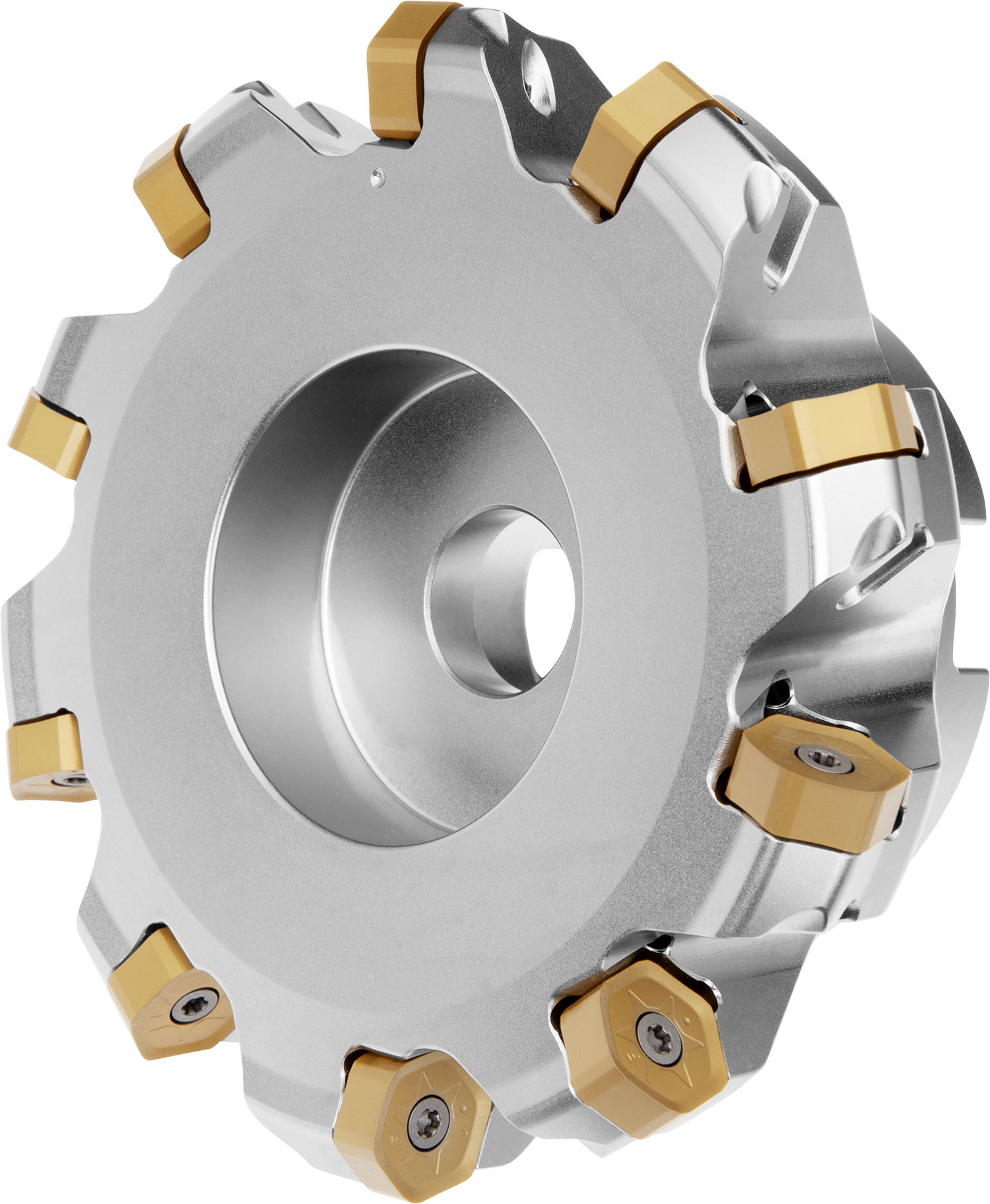

Face mill with double negative geometry which utilises 10 off HNGX 0906AN.. or XNGX 0906AN.. double-sided inserts, cutting diameter 4.000 to maximum 4.461'' with 45° approach angle and 1.500'' connection bore according to DIN 8030-A, 1.969'' protrusion length for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of .197''.
Product Specifications
| EDP Number | 6790766 |
| Peripheral Effective Cutting Edge Count | 10 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -8 |
| Max Rotational Speed | 5600 |
| Connection Bore Diameter (Inch) | 1.5" |
| Counterbore Diameter Connection Bore (Inch) | 1.26" |
| Keyway Width (Inch) | 0.63" |
| Keyway Depth (Inch) | 0.382" |
| Cutting Diameter (mm) | 101.6 mm |
| Cutting Diameter (Inch) | 4" |
| Max Cutting Diameter (Inch) | 4.461" |
| Functional Length (Inch) | 1.969" |
