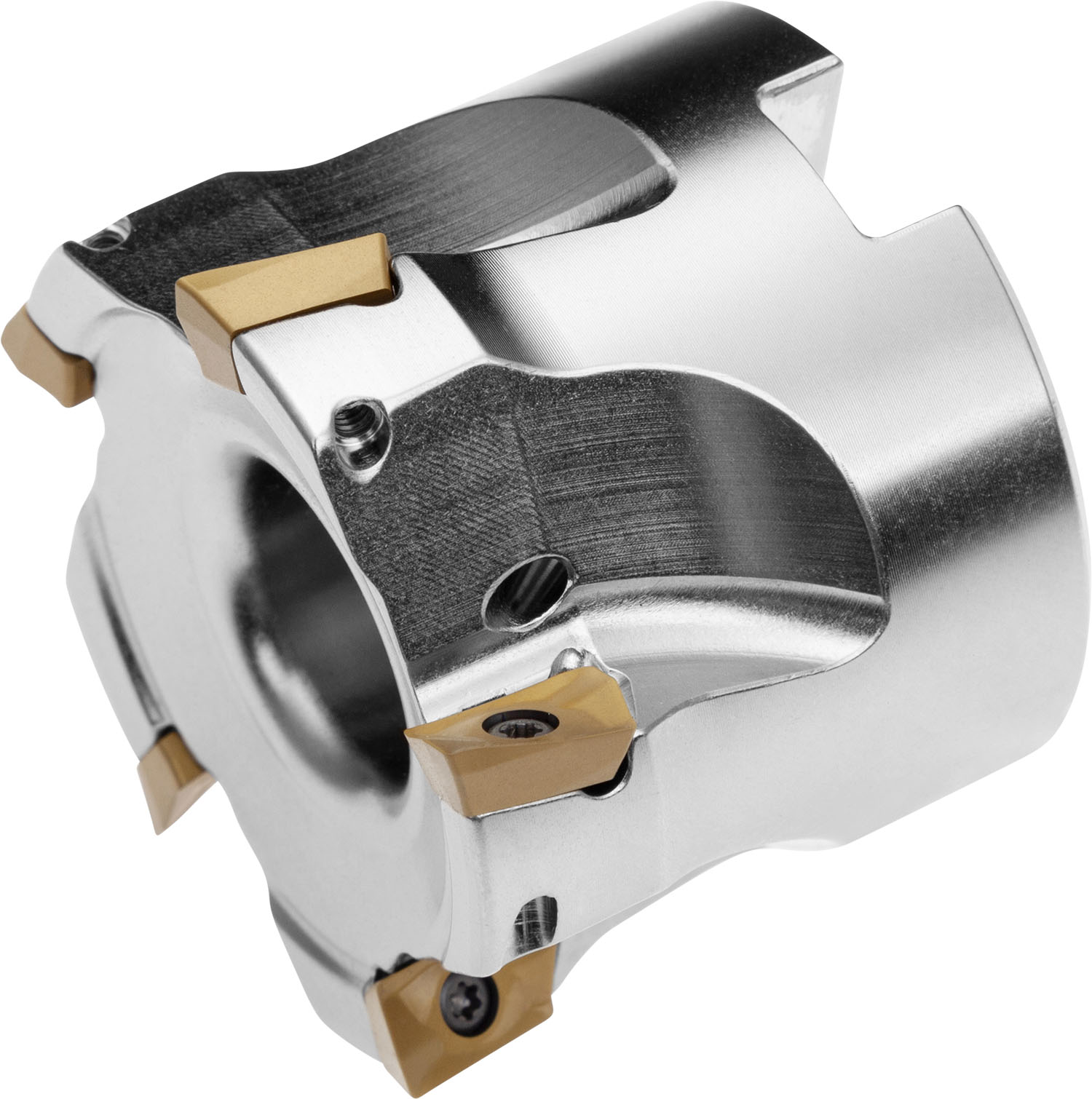

Shoulder mill with positve/negative geometry which utilises 4 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 40 mm with 90° approach angle and 16 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0 mm.
Product Specifications
| EDP Number | 6760198 |
| Peripheral Effective Cutting Edge Count | 4 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 4 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 11 |
| Radial Rake Angle | -8.1 |
| Max Rotational Speed | 19100 |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Counterbore Diameter Connection Bore (mm) | 14 mm |
| Keyway Width (mm) | 8.4 mm |
| Keyway Depth (mm) | 5.6 mm |
| Cutting Diameter (mm) | 40 mm |
| Cutting Diameter (Inch) | 1.575" |
| Functional Length (mm) | 40 mm |
