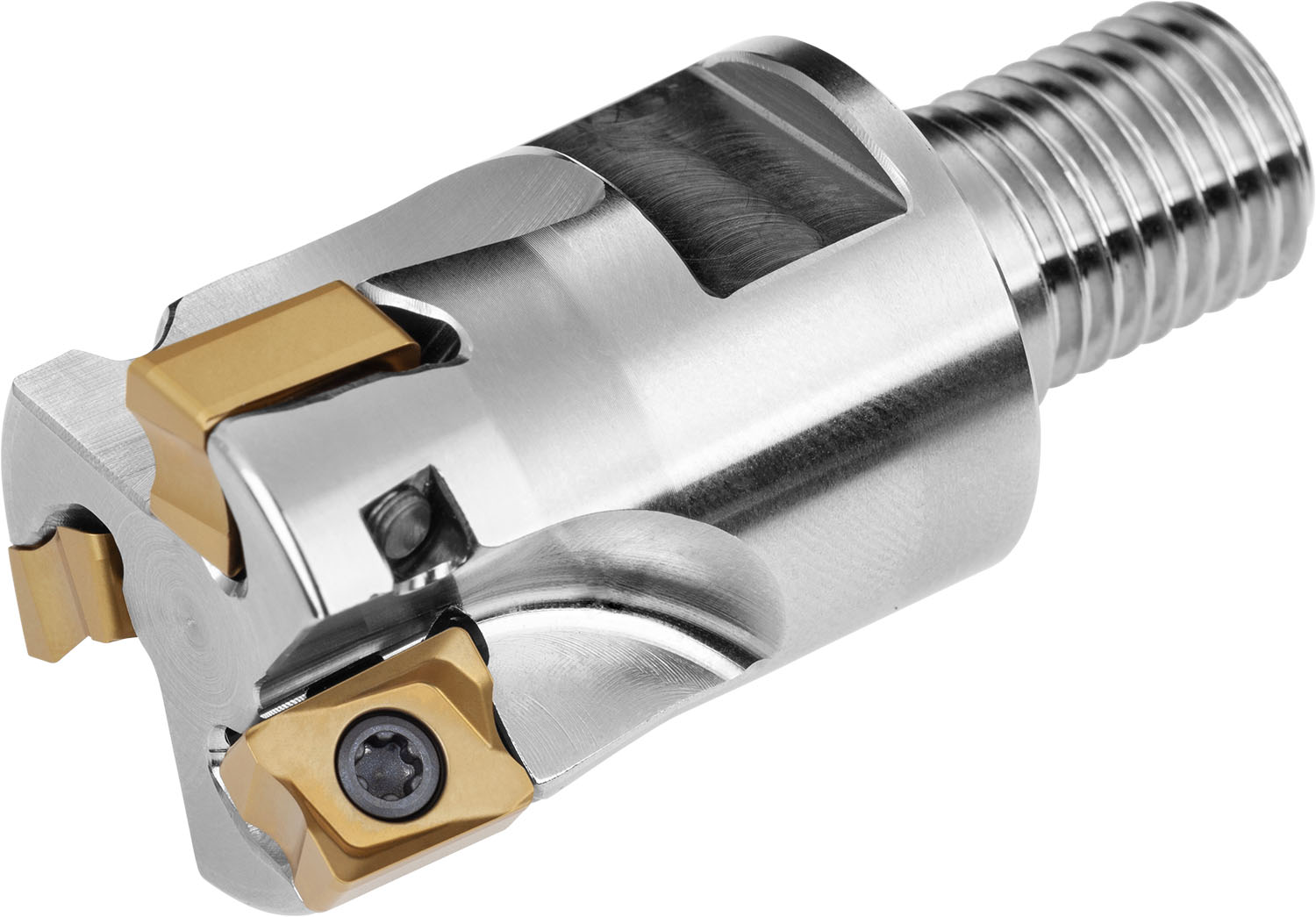

Shoulder mill with double negative geometry which utilises 3 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 40 mm with 90° approach angle and M16 threaded shank for standard modular tool-holders, 43 mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 9.0 mm.
Product Specifications
| EDP Number | 6760287 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -6 |
| Radial Rake Angle | -15 |
| Connection Diameter (mm) | 17 mm |
| Connection Diameter (Inch) | 0.669" |
| Cutting Diameter (mm) | 40 mm |
| Cutting Diameter (Inch) | 1.575" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 43 mm |
