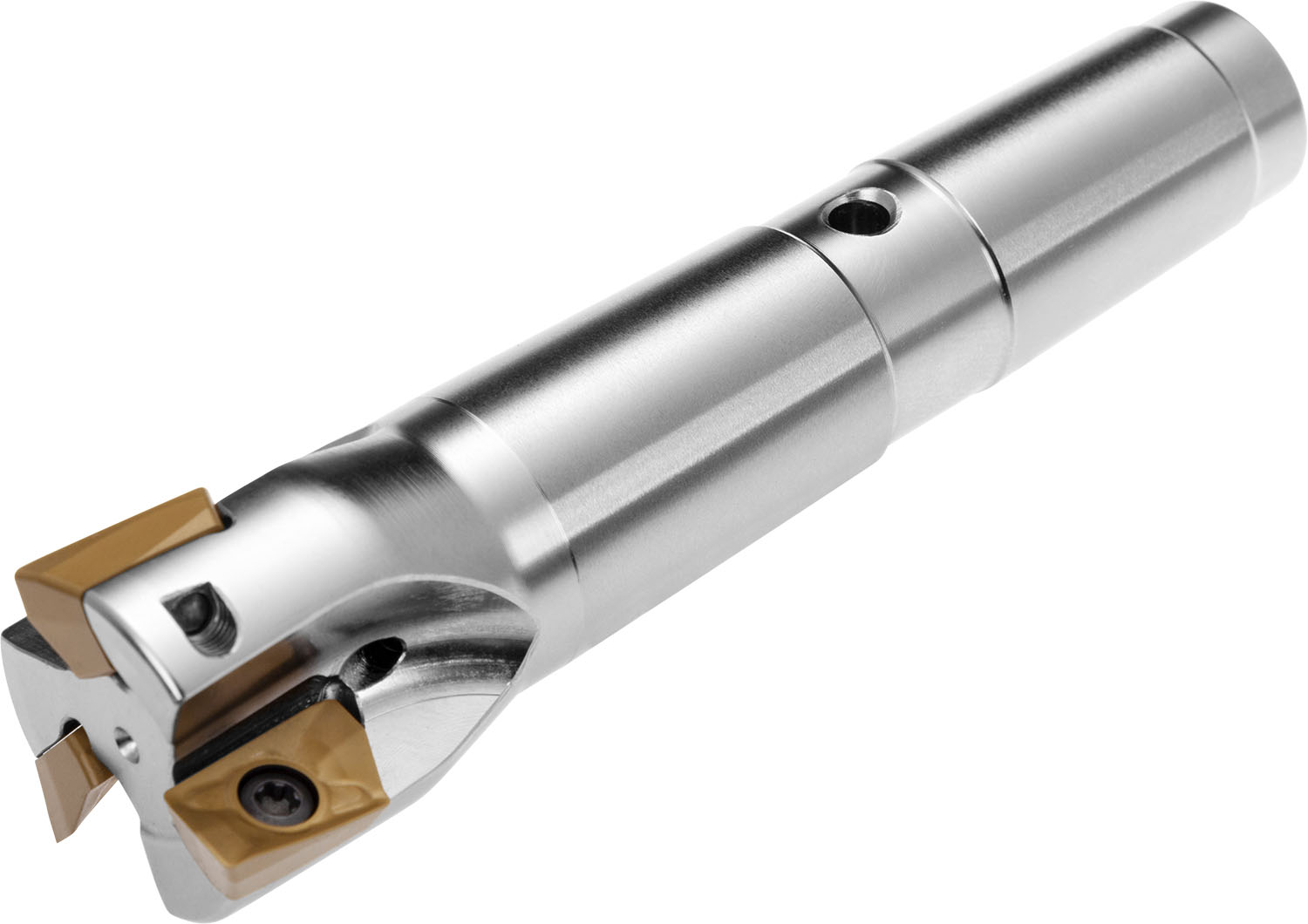

Shoulder mill with positve/negative geometry which utilises 3 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 32 mm with 90° approach angle and MT 3 morse taper shank according to DIN 228-1A, 38 mm functional and 100 mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0 mm.
Product Specifications
| EDP Number | 6758506 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 7 |
| Radial Rake Angle | -12 |
| Max Rotational Speed | 16500 |
| Connection Size Code Machine Side | 3 |
| Cutting Diameter (mm) | 32 mm |
| Cutting Diameter (Inch) | 1.26" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 38 mm |
| Functional Length (mm) | 43 mm |
