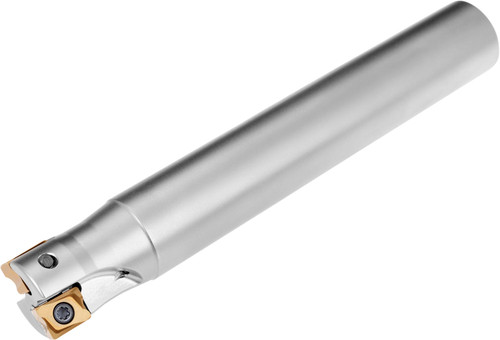

Shoulder mill with double negative geometry which utilises 4 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 40 mm with 90° approach angle and 32 mm Weldon shank according to DIN 1835B, 50 mm functional and 111 mm overall length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 9.0 mm.
Product Specifications
| EDP Number | 6760302 |
| Peripheral Effective Cutting Edge Count | 4 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 4 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -6 |
| Radial Rake Angle | -15 |
| Max Rotational Speed | 15500 |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Cutting Diameter (mm) | 40 mm |
| Cutting Diameter (Inch) | 1.575" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 50 mm |
