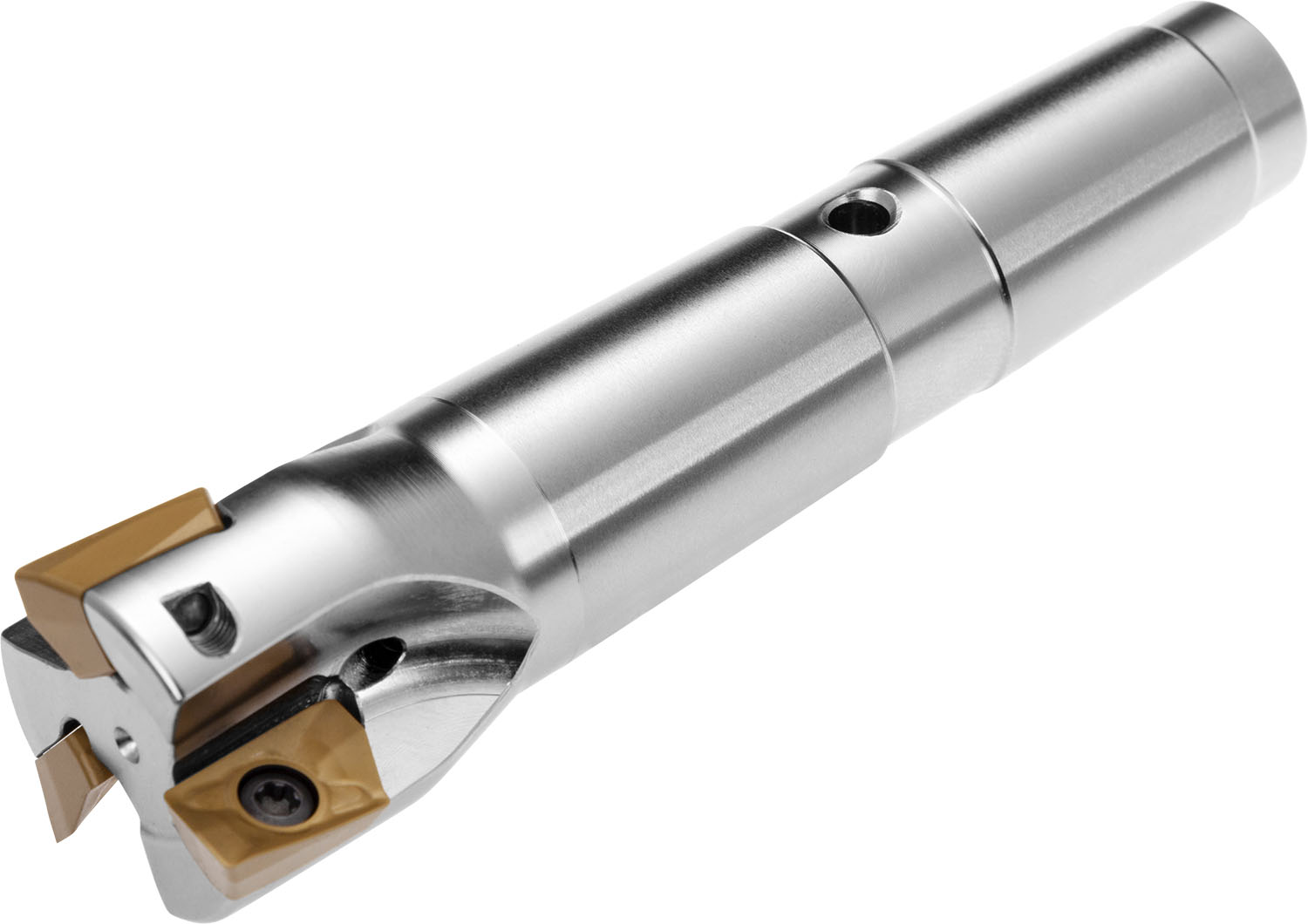

Shoulder mill with positve/negative geometry which utilises 3 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 40 mm with 90 Degree approach angle and MT 4 morse taper shank according to DIN 228-1A, 48 mm functional and 110 mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0 mm.
Product Specifications
| EDP Number | 6758507 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 10.5 |
| Radial Rake Angle | -8.2 |
| Max Rotational Speed | 14700 |
| Connection Size Code Machine Side | 4 |
| Cutting Diameter (mm) | 40 mm |
| Cutting Diameter (Inch) | 1.575" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 48 mm |
| Functional Length (mm) | 54 mm |
| Country of origin | Czech Republic |
