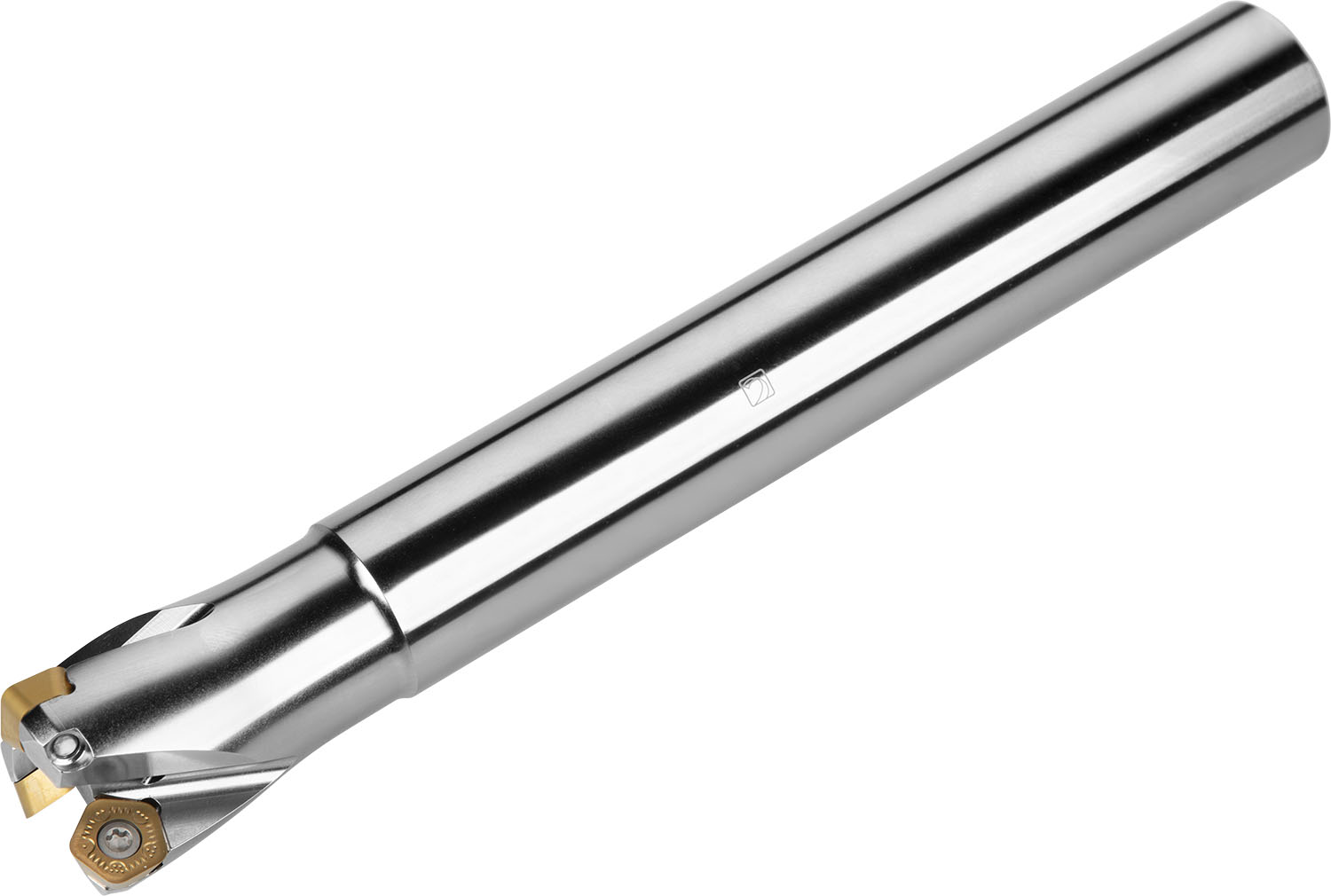

High feed cutter with positve/negative geometry which utilises 3 off PD.X 0905ZE.., PDKT 0905.. or PDMW 0905.. single-sided inserts, cutting diameter 40 mm with 19 Degree approach angle and 32 mm parallel shank according to DIN 1835A, 60 mm functional and 250 mm overall length, through coolant for face milling with a maximum depth of cut of 2.0 mm.
Product Specifications
| EDP Number | 6920666 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 10 |
| Radial Rake Angle | -11 |
| Max Rotational Speed | 11700 |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Cutting Diameter (mm) | 25.5 mm |
| Max Cutting Diameter (mm) | 40 mm |
| Cutting Diameter (Inch) | 1.004" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 60 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
