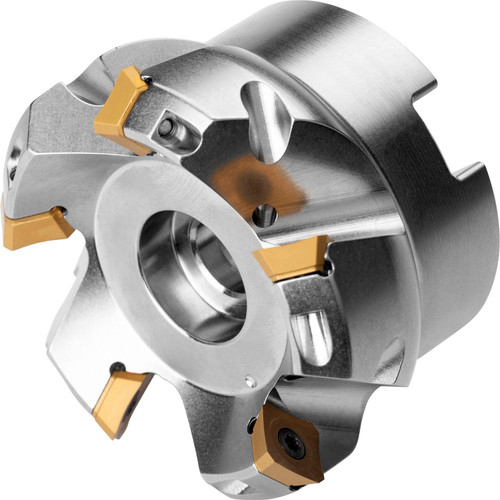

Shoulder mill with positve/negative geometry which utilises 12 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 5.000'' with 90 Degree approach angle and 1.500'' connection bore according to DIN 8030-A, 2.480'' protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354''.
Product Specifications
| EDP Number | 6790727 |
| Peripheral Effective Cutting Edge Count | 12 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 12 |
| Radial Rake Angle | -5.2 |
| Max Rotational Speed | 10800 |
| Connection Diameter (mm) | 38.1 mm |
| Connection Diameter (Inch) | 1.5" |
| Counterbore Diameter Connection Bore (Inch) | 1.26" |
| Cutting Diameter (mm) | 127 mm |
| Cutting Diameter (Inch) | 5" |
| Functional Length (Inch) | 2.48" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
1
