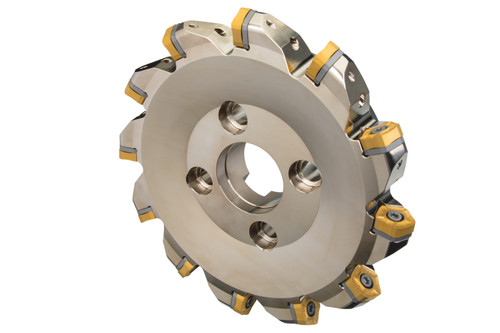

Face mill with double negative geometry which utilises 6 off PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 5.000 to maximum 5.629'' with 57 Degree approach angle and 1.500'' connection bore according to DIN 8030-B, 2.480'' protrusion length for face milling with a maximum depth of cut of .394''.
Product Specifications
| EDP Number | 6792989 |
| Peripheral Effective Cutting Edge Count | 6 |
| Axial Rake Angle | -4 |
| Radial Rake Angle | -7 |
| Max Rotational Speed | 3100 |
| Connection Diameter (mm) | 38.1 mm |
| Connection Diameter (Inch) | 1.5" |
| Keyway Width (Inch) | 0.63" |
| Keyway Depth (Inch) | 0.382" |
| Diameter Bolt Circle 1 (Inch) | 2.205" |
| Cutting Diameter (mm) | 127 mm |
| Cutting Diameter (Inch) | 5" |
| Max Cutting Diameter (Inch) | 5.629" |
| Functional Length (Inch) | 2.48" |
| Country of origin | Czech Republic |
