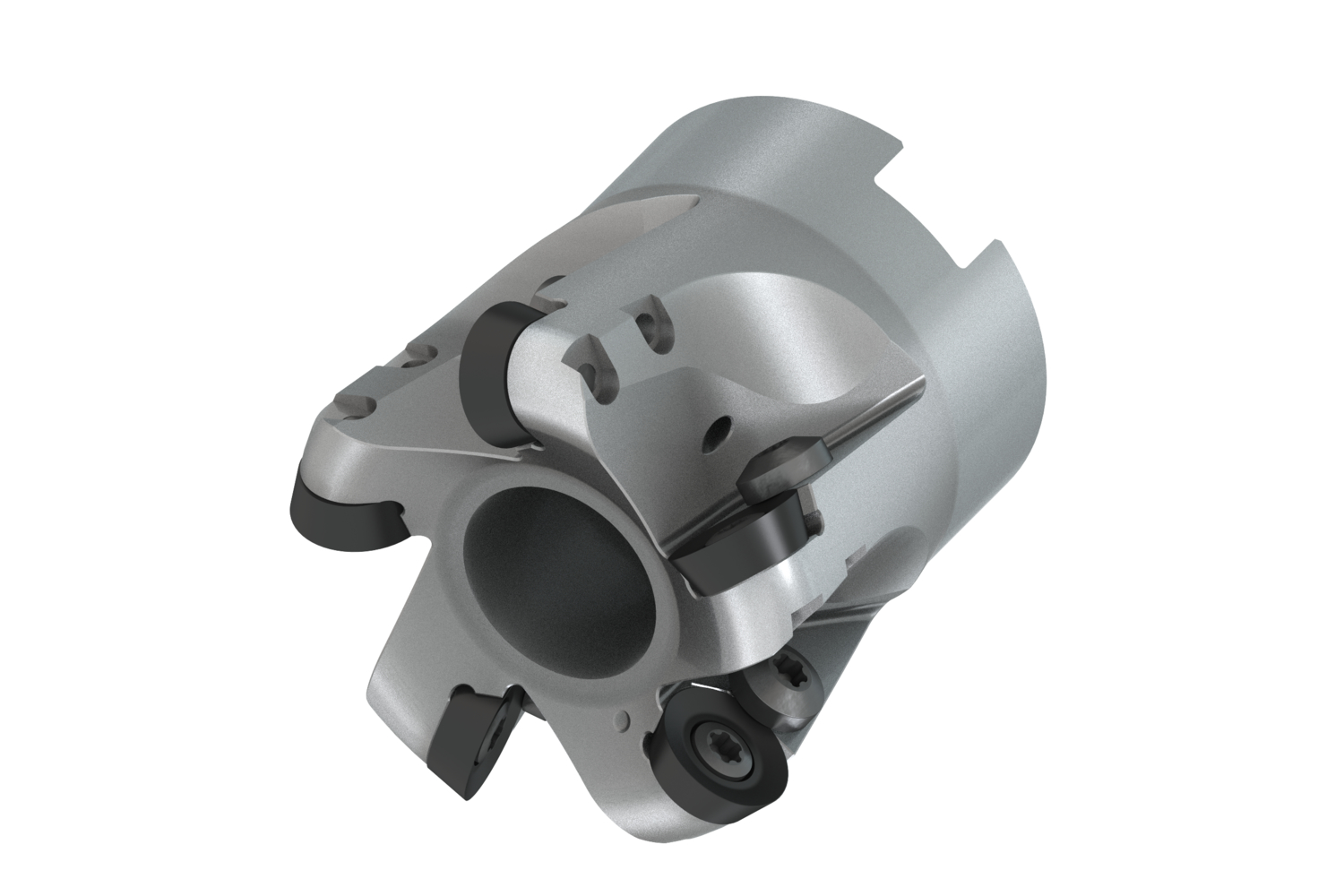

Copy face mill with double positive geometry which utilises 5 of RD.. 12T3MOT or RDHT 12T3MO-FA single-sided inserts, cutting diameter to maximum 50 mm with 22 mm connection bore according to DIN 8030-A, 50 mm functional and, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 3 mm.
Product Specifications
| EDP Number | 7999325 |
| Peripheral Effective Cutting Edge Count | 5 |
| Insert Index Count | 5 |
| Maximum Depth of Cut (mm) | 3 mm |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 7 |
| Radial Rake Angle | 2 |
| Max Rotational Speed | 15200 |
| Connection Diameter (mm) | 22 mm |
| Connection Diameter (Inch) | 0.866" |
| Counterbore Diameter Connection Bore (mm) | 18 mm |
| Keyway Width (mm) | 10.4 mm |
| Keyway Depth (mm) | 10.4 mm |
| Cutting Diameter (mm) | 38 mm |
| Max Cutting Diameter (mm) | 50 mm |
| Cutting Diameter (Inch) | 1.496" |
| Functional Length (mm) | 50 mm |
| Clamping Type Code | System SC |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
