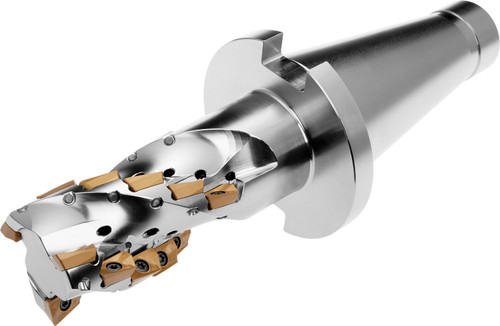

Shoulder mill with extended flute with positve/negative geometry which utilises 18 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 50 mm with 90 Degree approach angle and SK 50 taper shank according to ISO 297, 80 mm functional and 267 mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 80 mm.
Product Specifications
| EDP Number | 6922378 |
| Peripheral Effective Cutting Edge Count | 18 |
| Insert Index Count | 18 |
| Maximum Depth of Cut (mm) | 80 mm |
| Flute Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 12 |
| Radial Rake Angle | -6 |
| Max Rotational Speed | 13200 |
| Connection Size Code Machine Side | 50 |
| Cutting Diameter (mm) | 50 mm |
| Cutting Diameter (Inch) | 1.969" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 140 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
1
