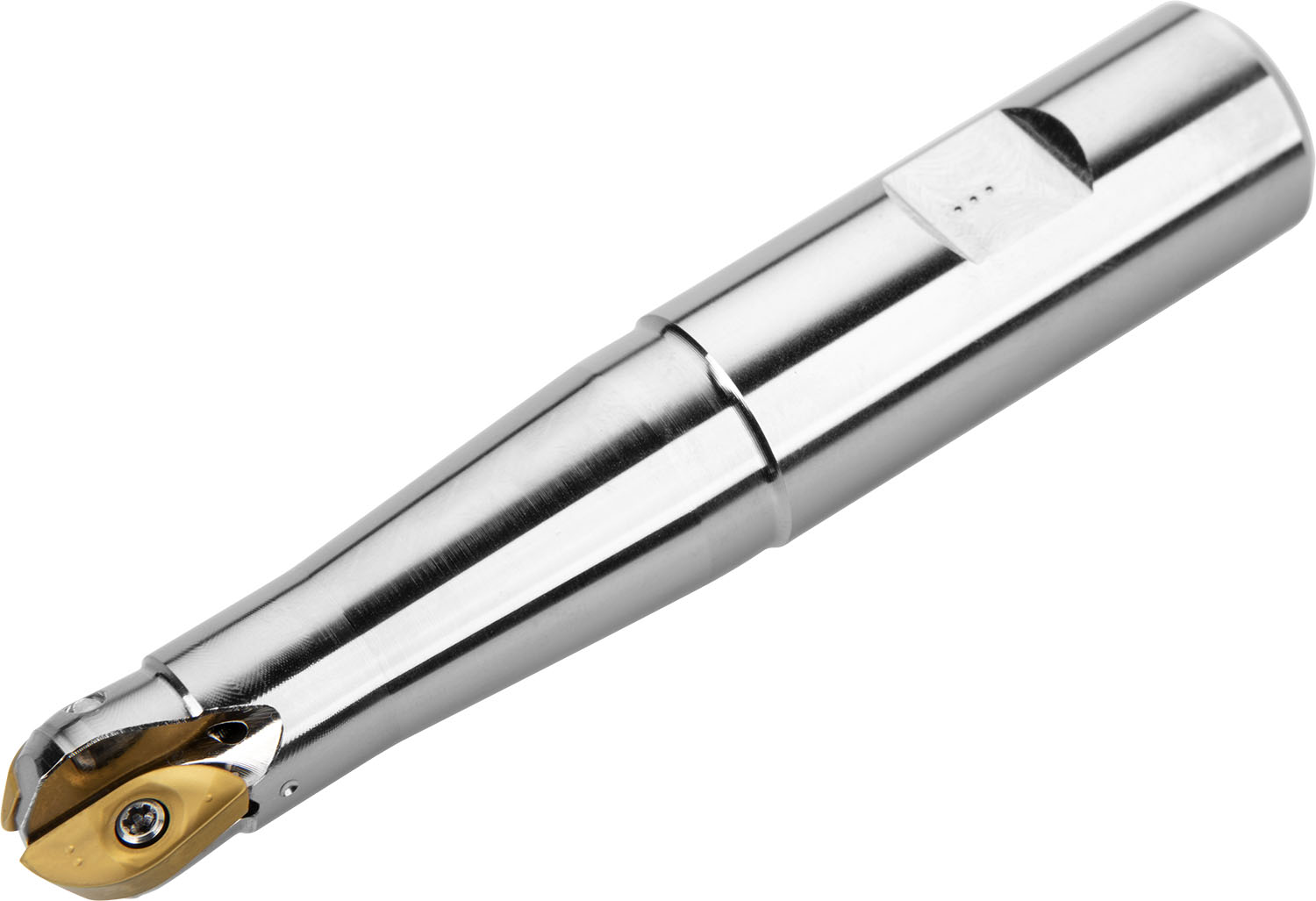

Copy end mill with double negative geometry which utilises 2 off ZP 50.. single-sided inserts, cutting diameter 50 mm with 50 mm Weldon shank according to DIN 1835B, 100 mm functional and 181 mm overall length, through coolant for copy milling with a maximum depth of cut of 44,7 mm.
Product Specifications
| EDP Number | 6761645 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | 0 |
| Maximum Ramping Angle | 44.7 |
| Max Rotational Speed | 7000 |
| Connection Diameter (mm) | 50 mm |
| Connection Diameter (Inch) | 1.969" |
| Max Cutting Diameter (mm) | 50 mm |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 100 mm |
| Functional Length (mm) | 136.5 mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
1
