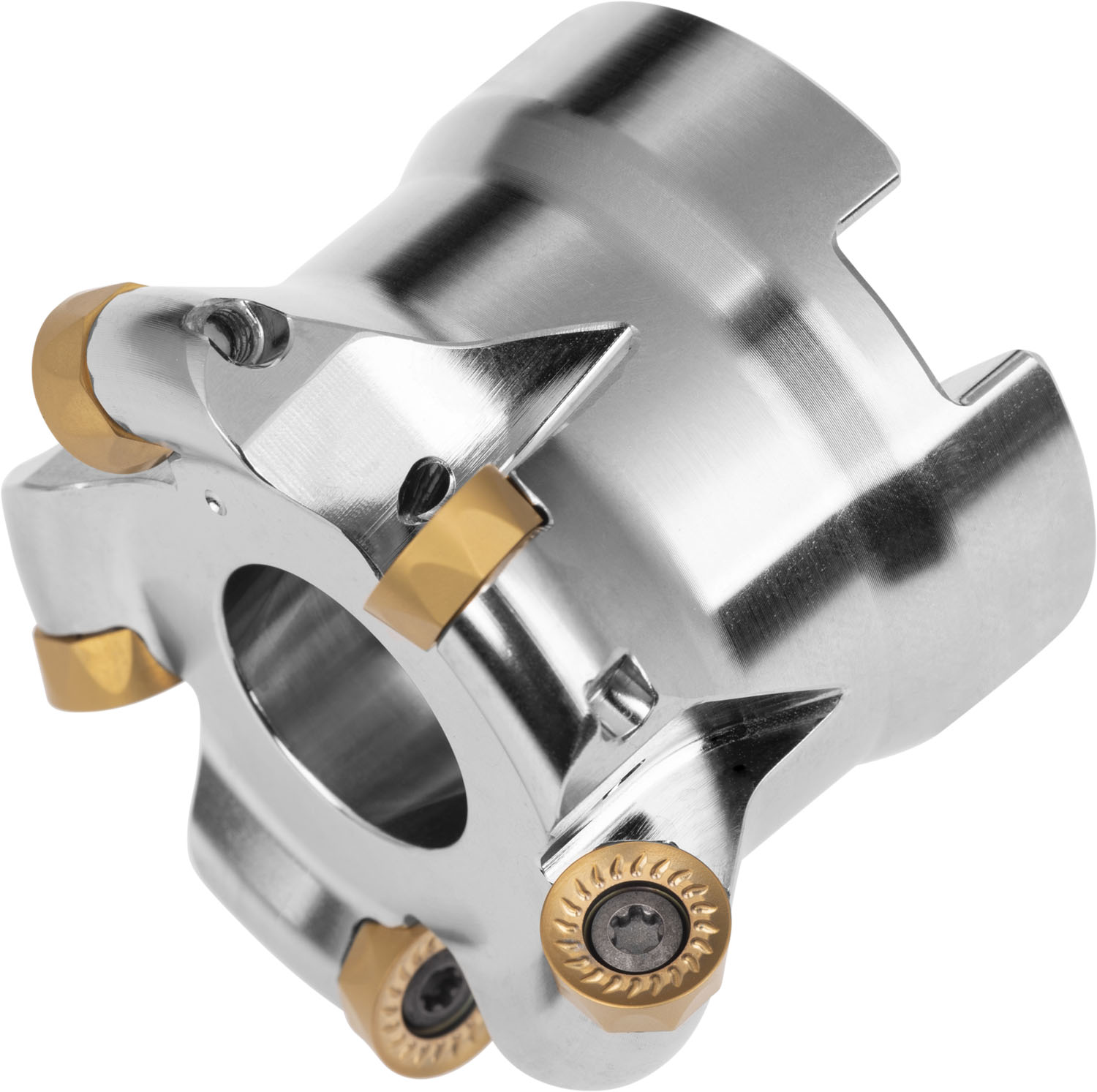

Copy face mill with double negative geometry which utilises 6 off RCMT 10T3MO.. single-sided inserts, cutting diameter 52 mm with 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 5.0 mm.
Product Specifications
| EDP Number | 7444334 |
| Peripheral Effective Cutting Edge Count | 6 |
| Insert Index Count | 6 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -2 |
| Max Rotational Speed | 14500 |
| Connection Diameter (mm) | 22 mm |
| Connection Diameter (Inch) | 0.866" |
| Counterbore Diameter Connection Bore (mm) | 18 mm |
| Keyway Width (mm) | 10.4 mm |
| Keyway Depth (mm) | 6.3 mm |
| Cutting Diameter (mm) | 42 mm |
| Max Cutting Diameter (mm) | 52 mm |
| Cutting Diameter (Inch) | 1.654" |
| Functional Length (mm) | 40 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
