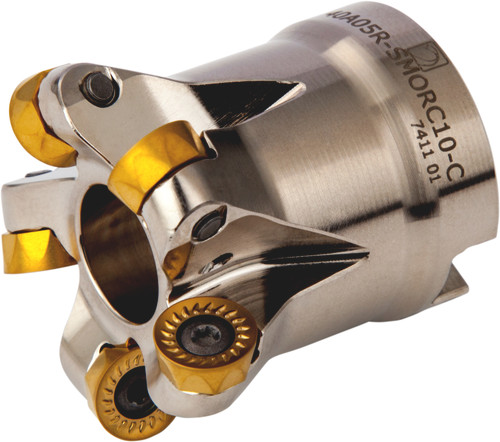

Copy face mill with double negative geometry which utilises 7 off RCMT 10T3MO.. single-sided inserts, cutting diameter 66 mm with 27 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 5.0 mm.
Product Specifications
| EDP Number | 7444338 |
| Peripheral Effective Cutting Edge Count | 7 |
| Insert Index Count | 7 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -1.4 |
| Max Rotational Speed | 12800 |
| Connection Diameter (mm) | 27 mm |
| Connection Diameter (Inch) | 1.063" |
| Counterbore Diameter Connection Bore (mm) | 22 mm |
| Keyway Width (mm) | 12.4 mm |
| Keyway Depth (mm) | 7 mm |
| Cutting Diameter (mm) | 56 mm |
| Max Cutting Diameter (mm) | 66 mm |
| Cutting Diameter (Inch) | 2.205" |
| Functional Length (mm) | 50 mm |
