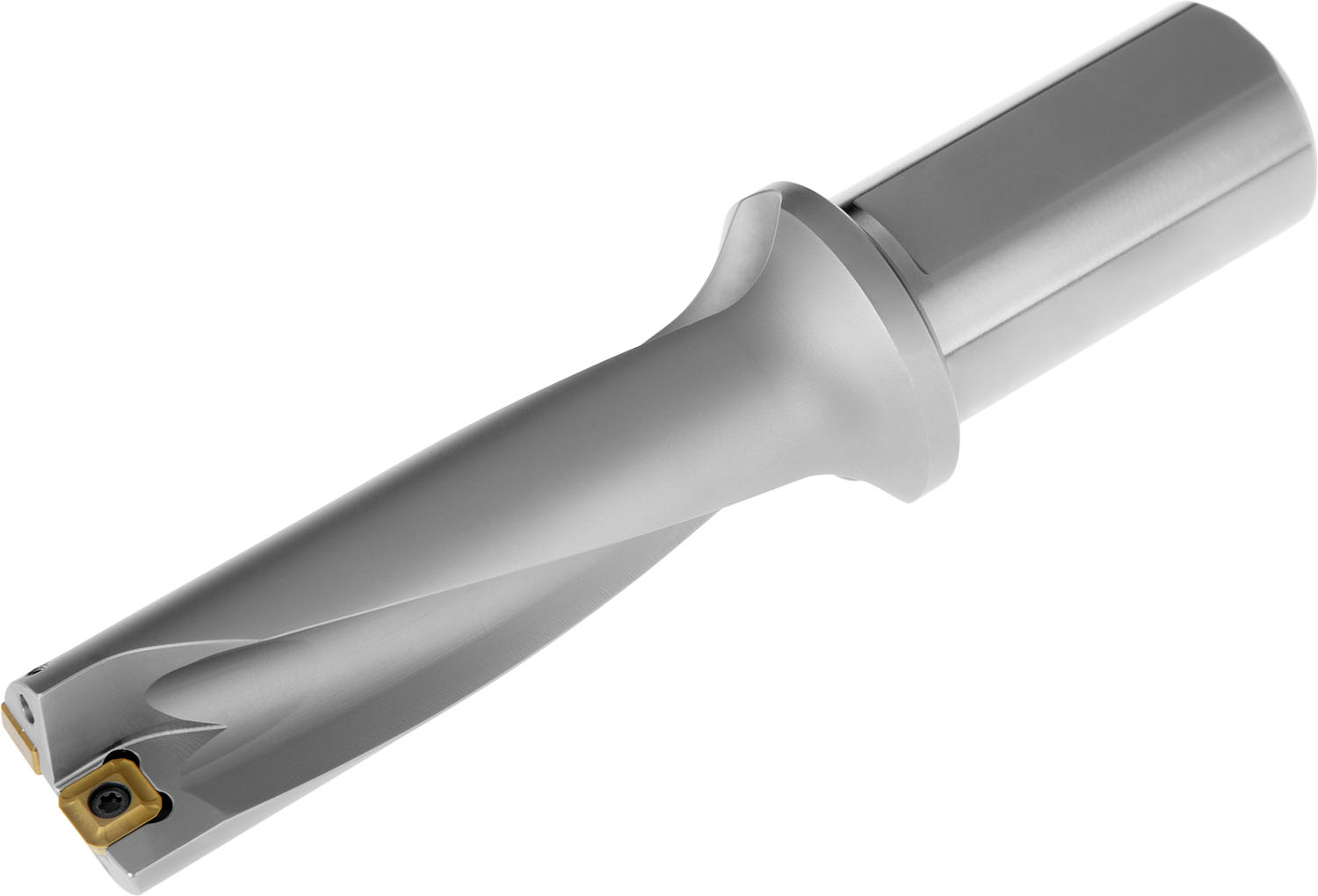

Indexable insert drill which utilises an XPET 0903.. insert in the central pocket and a SCET 09T3.. insert in the peripheral pocket, cutting diameter 1.172'', with a 1.250'' cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D.
Product Specifications
| EDP Number | 6801140 |
| Max Depth of cut (Inch) | 3.516" |
| Min Adjustment Limit (Inch) | 0.014" |
| 0.02" | |
| Connection Diameter (mm) | 31.8 mm |
| Connection Diameter (Inch) | 1.25" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 29.8 mm |
| Cutting Diameter (Inch) | 1.172" |
| Overall Length (mm) | 174 mm |
| Overall Length (Inch) | 6.862" |
| Usable Length (Inch) | 3.807" |
| Protruding Length (Inch) | 4.5" |
| Shank Length (Inch) | 2.362" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
