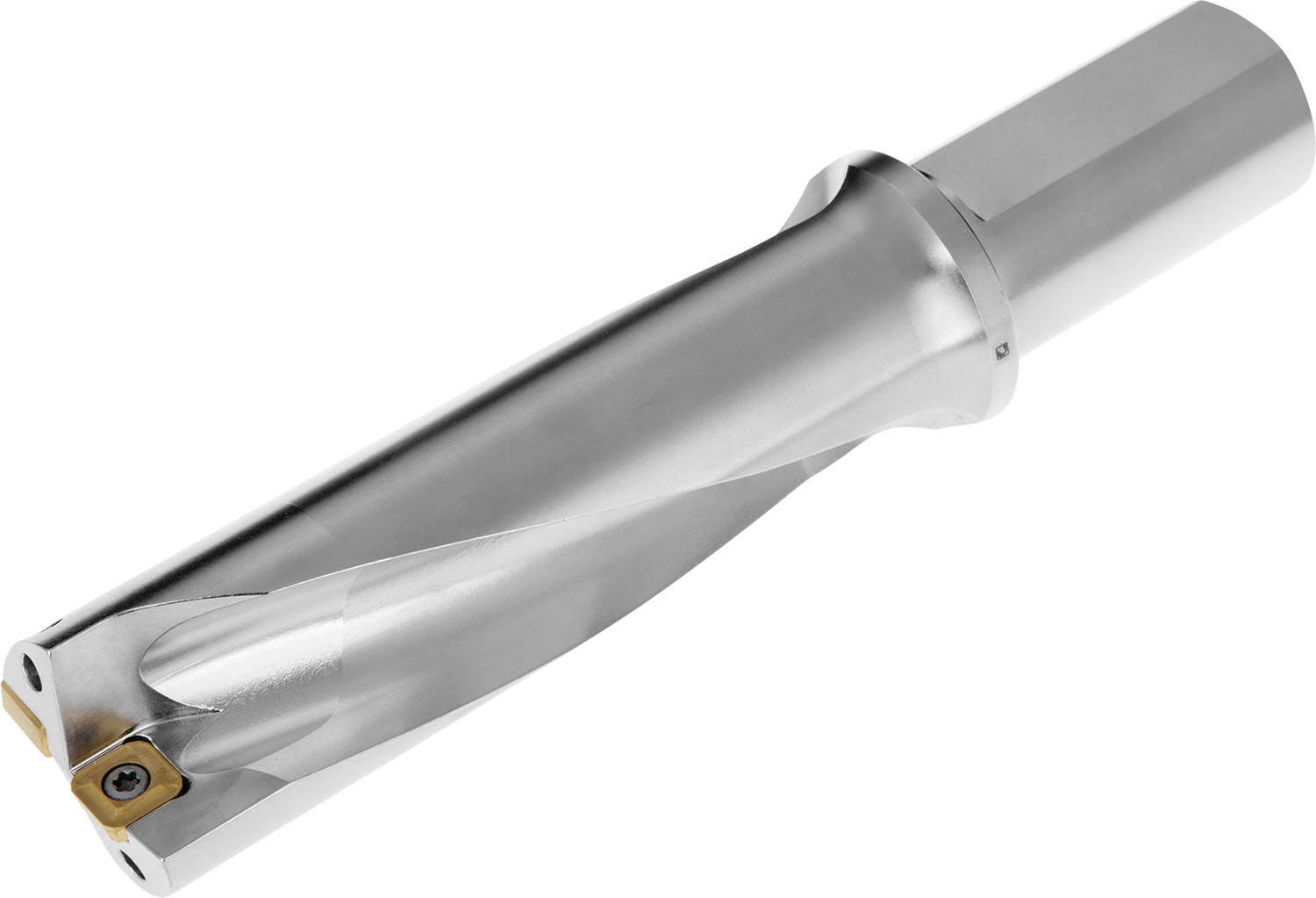

Indexable insert drill which utilises an XPET 12T3.. insert in the central pocket and a SCET 1204.. insert in the peripheral pocket, cutting diameter 38mm in combination with EP324058, suited for a radial adjustment of -0.40 to +0.50mm, with a 32mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D.
Product Specifications
| EDP Number | 6820833 |
| Max Depth of Cut (mm) | 114 mm |
| Coolant Supply Property | 1 |
| Min Adjustment Limit (mm) | 0.4 mm |
| Max Adjustment Limit (mm) | 0.5 mm |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 38 mm |
| Cutting Diameter (Inch) | 1.496" |
| Overall Length (mm) | 209 mm |
| Overall Length (Inch) | 8.228" |
| Usable Length (mm) | 123 mm |
| Protruding Length (mm) | 149 mm |
| Shank Length (mm) | 60 mm |
| Cutting Edge Count | 1 |
