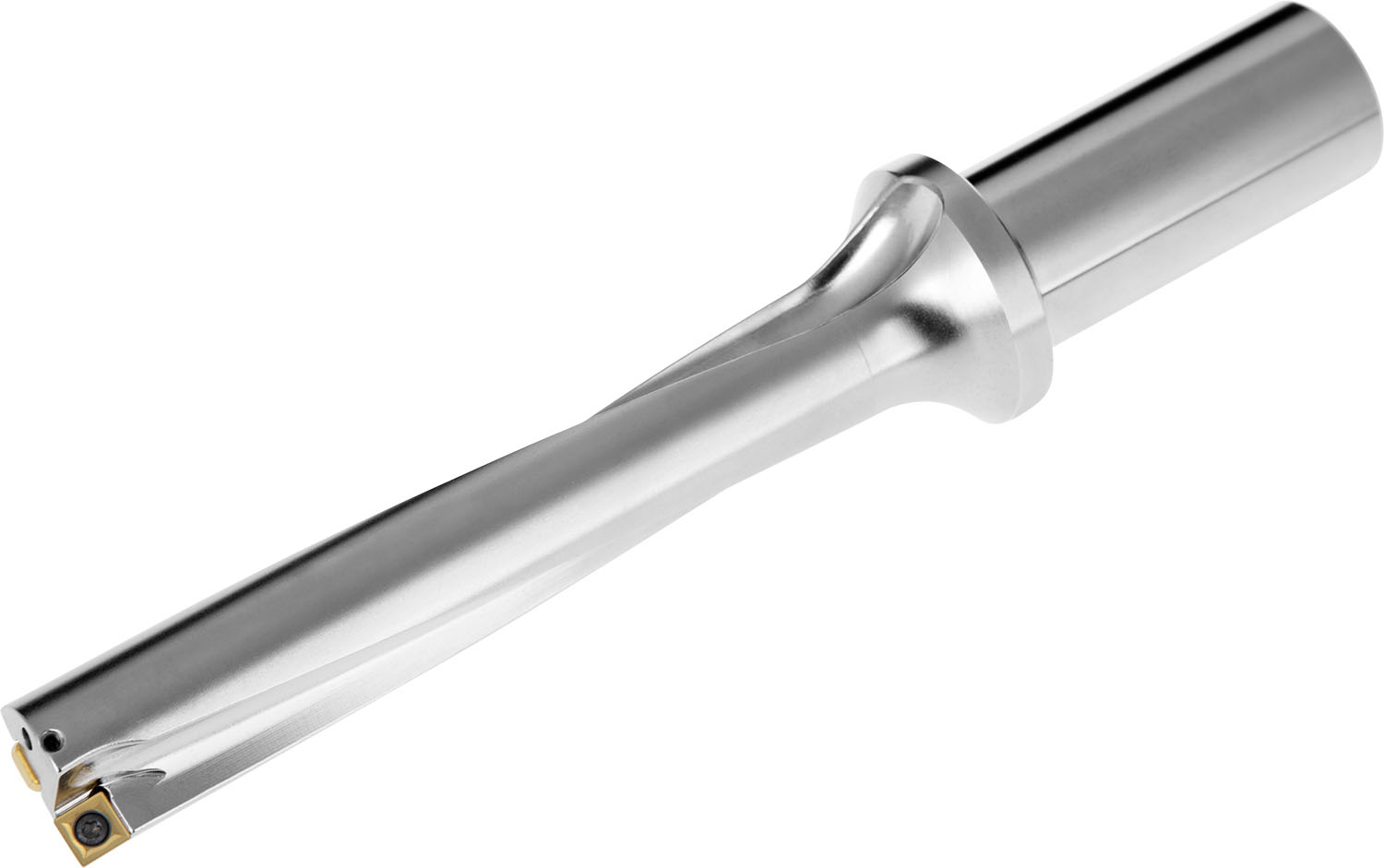

Indexable insert drill which utilises an XPET 0703.. insert in the central pocket and a SCET 0602.. insert in the peripheral pocket, cutting diameter 22mm, with a 25mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 5 x D.
Product Specifications
| EDP Number | 6759012 |
| Max Depth of Cut (mm) | 110 mm |
| Coolant Supply Property | 1 |
| Min Adjustment Limit (mm) | 0.45 mm |
| Max Adjustment Limit (mm) | 0.5 mm |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 22 mm |
| Cutting Diameter (Inch) | 0.866" |
| Overall Length (mm) | 191 mm |
| Overall Length (Inch) | 7.52" |
| Usable Length (mm) | 116 mm |
| Protruding Length (mm) | 135 mm |
| Shank Length (mm) | 56 mm |
| Cutting Edge Count | 1 |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
