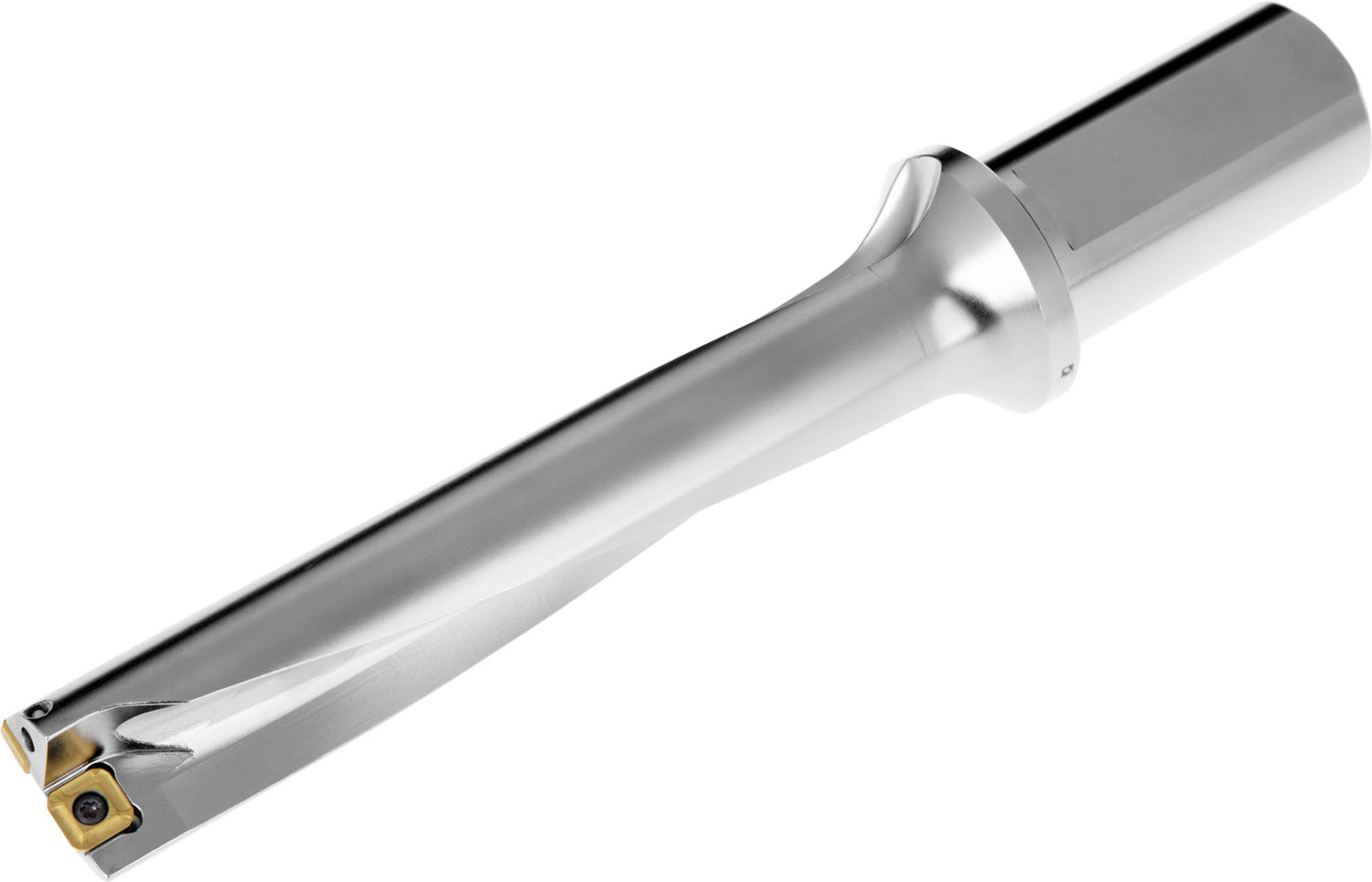

Indexable insert drill which utilises an XPET 0703.. insert in the central pocket and a SCET 0703.. insert in the peripheral pocket, cutting diameter 24mm, with a 25mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 5 x D.
Product Specifications
| EDP Number | 6759014 |
| Max Depth of Cut (mm) | 120 mm |
| Coolant Supply Property | 1 |
| Min Adjustment Limit (mm) | 0.15 mm |
| Max Adjustment Limit (mm) | 0.5 mm |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 24 mm |
| Cutting Diameter (Inch) | 0.945" |
| Overall Length (mm) | 201 mm |
| Overall Length (Inch) | 7.913" |
| Usable Length (mm) | 127 mm |
| Protruding Length (mm) | 145 mm |
| Shank Length (mm) | 56 mm |
| Cutting Edge Count | 1 |
