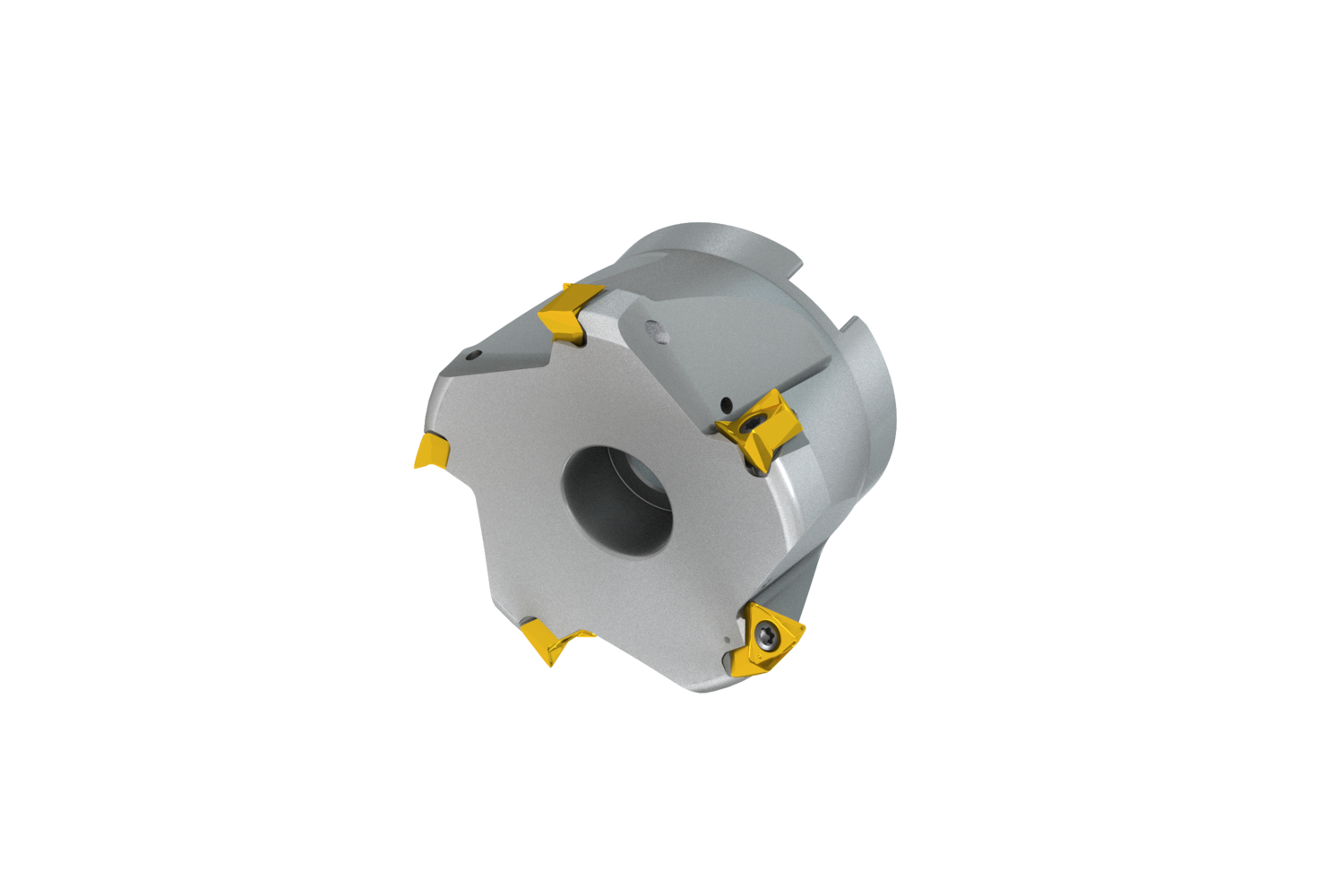

Shoulder face mill with double negative geometry which utilises 5 of TNGX 1606.. double-sided inserts, cutting diameter 80 mm with 90 Degree approach angle and 27 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes.
Product Specifications
| EDP Number | 8020905 |
| Peripheral Effective Cutting Edge Count | 5 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 5 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -9.5 |
| Radial Rake Angle | -16 |
| Max Rotational Speed | 11000 |
| Connection Diameter (mm) | 27 mm |
| Connection Diameter (Inch) | 1.063" |
| Counterbore Diameter Connection Bore (mm) | 22.1 mm |
| Keyway Width (mm) | 12.4 mm |
| Keyway Depth (mm) | 7 mm |
| Cutting Diameter (mm) | 80 mm |
| Cutting Diameter (Inch) | 3.15" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 50 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
