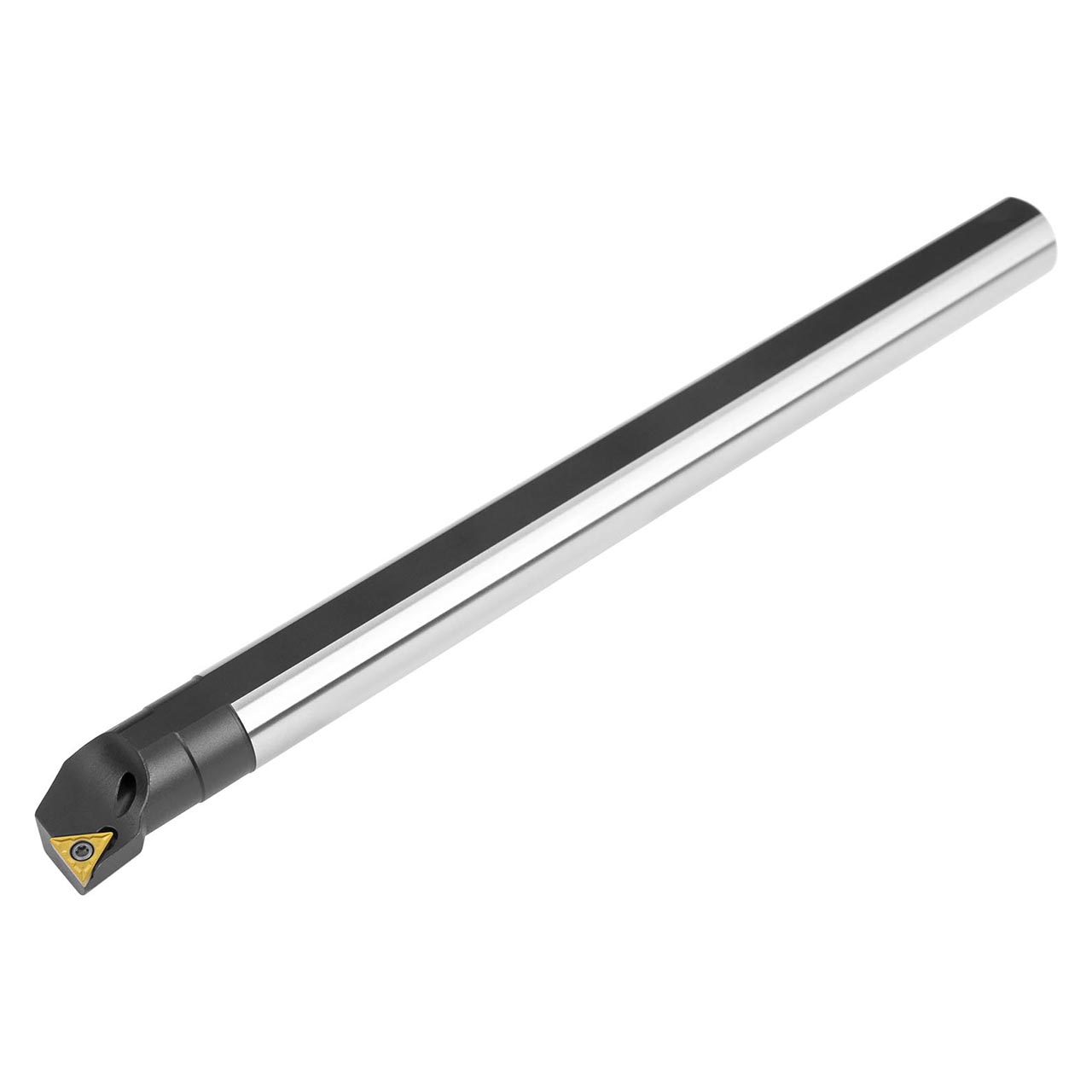

Screw clamp boring bar for holding a triangular positive insert with an inscribed circle diameter of 5.56 mm, 2.38 mm thick (ISO designation TC.. 0902.. ), right hand 90° end cutting with off-set shank, steel with coolant hole, 10 mm diameter x 125 mm long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6760916 |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Inclination Angle | -9 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 10 mm |
| Connection Diameter (Inch) | 0.394" |
| Shank Height (mm) | 9 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 125 mm |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Height (Inch):
23/64"
Shank Height (Decimal Inch):
0.3500"
Shank Height (mm):
9mm
