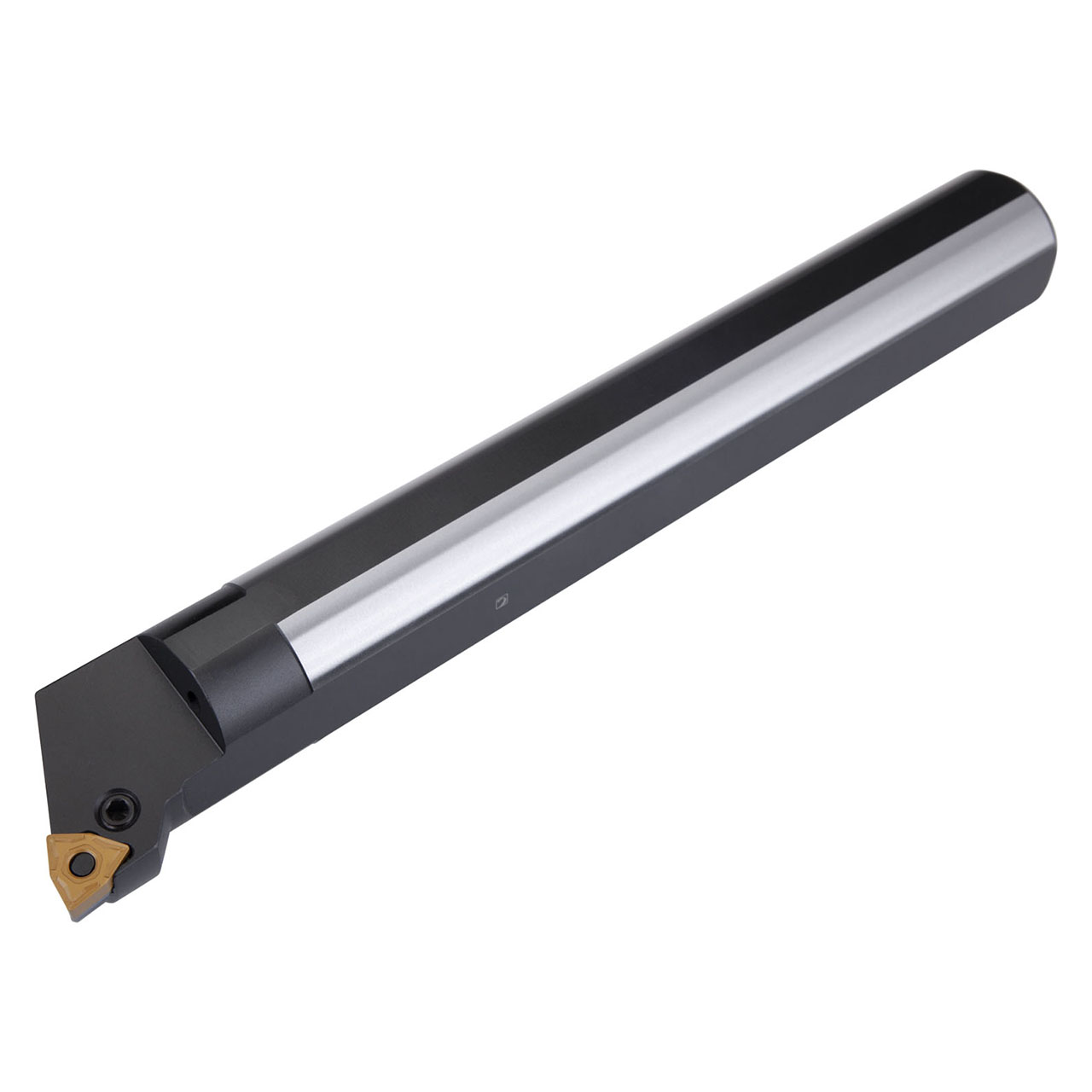

Pramet A16M-PWLNR 0604 | 150 mm Functional Length x 15 mm Shank Height Indexable Turning Toolholder

$214.00 $186.28
(You save $27.72)
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
19/32"
Shank Width (Decimal Inch):
0.5900"
Shank Width (mm):
15mm
Shank Height (Inch):
19/32"
Shank Height (Decimal Inch):
0.5900"
Shank Height (mm):
15mm
interval quantity:
1
SKU:
23144041
UPC:
Weight:
0.54 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Lever lock boring bar for holding a 80 Degree trigon negative insert with an inscribed circle diameter of 9.525 mm, 4.76 mm thick (ISO designation WN.. 0604.. ), right hand 95 Degree side and end cutting with off-set shank, steel with coolant hole, 16 mm diameter x 150 mm long for taper boring and longitudinal boring with and without shoulder.

Product Specifications
EDP Number6761034
Functional Width (mm)
Coolant Supply Property1
Orthogonal Rake Angle-6
Inclination Angle-13.5
Maximum Axial Groove Outside Diameter (mm)
Connection Diameter (mm)16 mm
Connection Diameter (Inch)0.63"
Shank Height (mm)15 mm
Shank Width (mm)15 mm
Minimum Bore Diameter (mm)
Functional Length (mm)150 mm
Direction of ToolRight
Country of originCzech Republic
