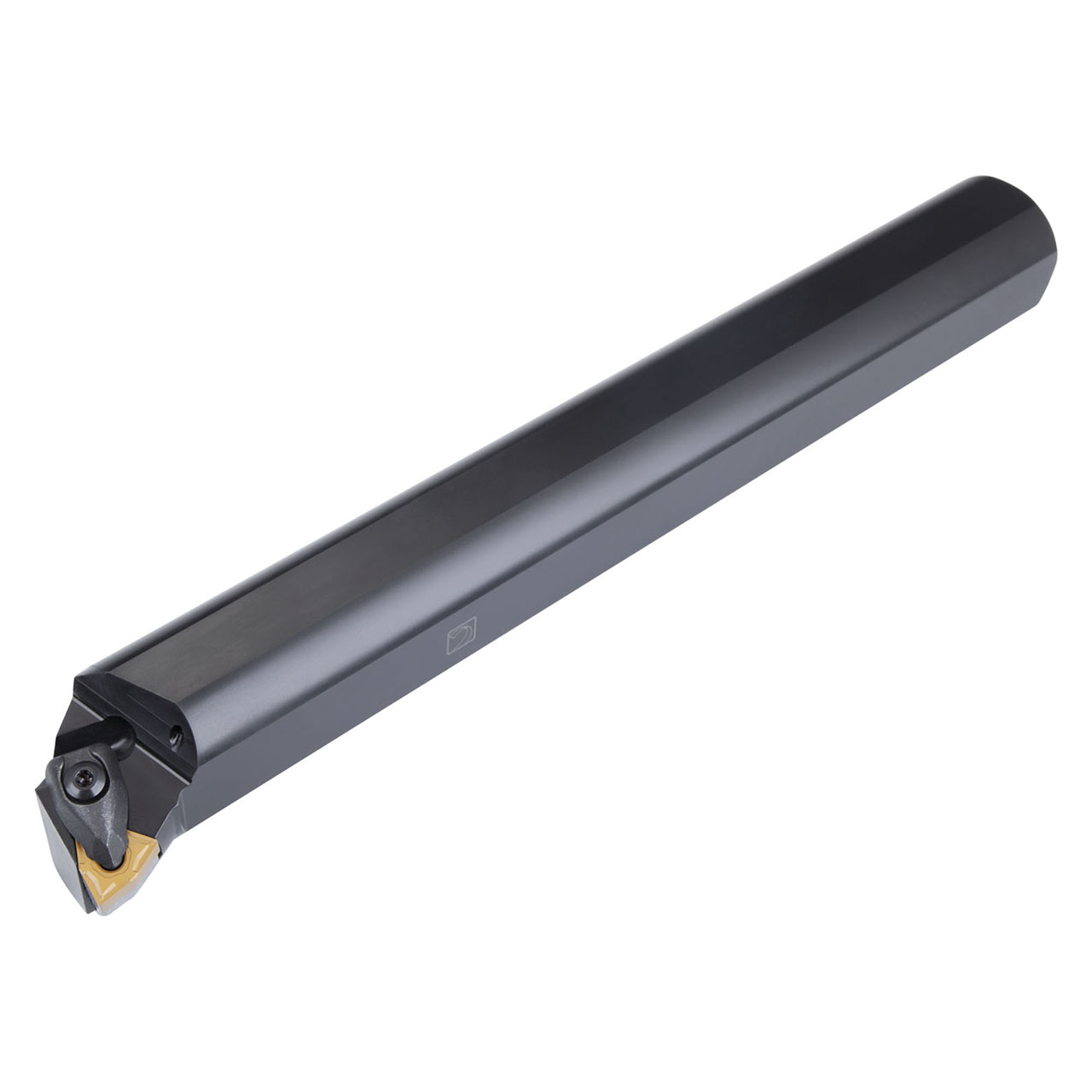

Double clamp boring bar for holding a 80° trigon negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation WN.. 43. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 1'' diameter x 12'' long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6788483 |
| Functional Width (Inch) | 0.75" |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -12 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 25.4 mm |
| Connection Diameter (Inch) | 1" |
| Shank Height (Inch) | 0.906" |
| Minimum Bore Diameter (Inch) | 1.299" |
| Functional Length (Inch) | 12" |
| Head Length (Inch) | 1.339" |
| Clamping Type Code | System D |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Height (Inch):
29/32"
Shank Height (Decimal Inch):
0.9060"
Shank Height (mm):
23.01mm
