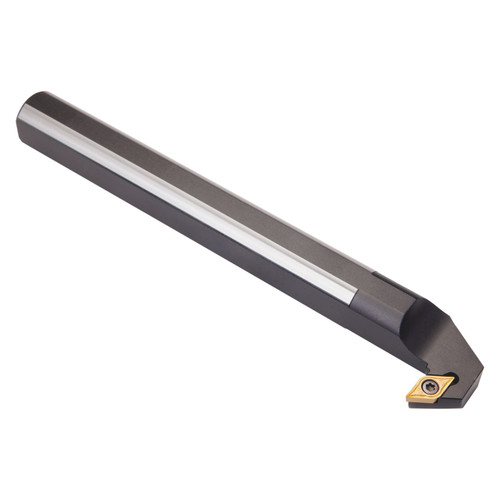

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 3/8'', 5/32'' thick (ANSI designation DC.. 32.5. ), right hand back cutting with off-set shank, steel with coolant hole, 1.1/4'' diameter x 12'' long for back chamfering.
Product Specifications
| EDP Number | 6788640 |
| Functional Width (Inch) | 0.875" |
| Inclination Angle | -7 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 31.8 mm |
| Connection Diameter (Inch) | 1.25" |
| Shank Height (Inch) | 1.181" |
| Minimum Bore Diameter (Inch) | 1.579" |
| Overall Length (mm) | 322 mm |
| Overall Length (Inch) | 12.658" |
| Functional Length (Inch) | 12" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Height (Inch):
1-3/16"
Shank Height (Decimal Inch):
1.1810"
Shank Height (mm):
30mm
interval quantity:
1
