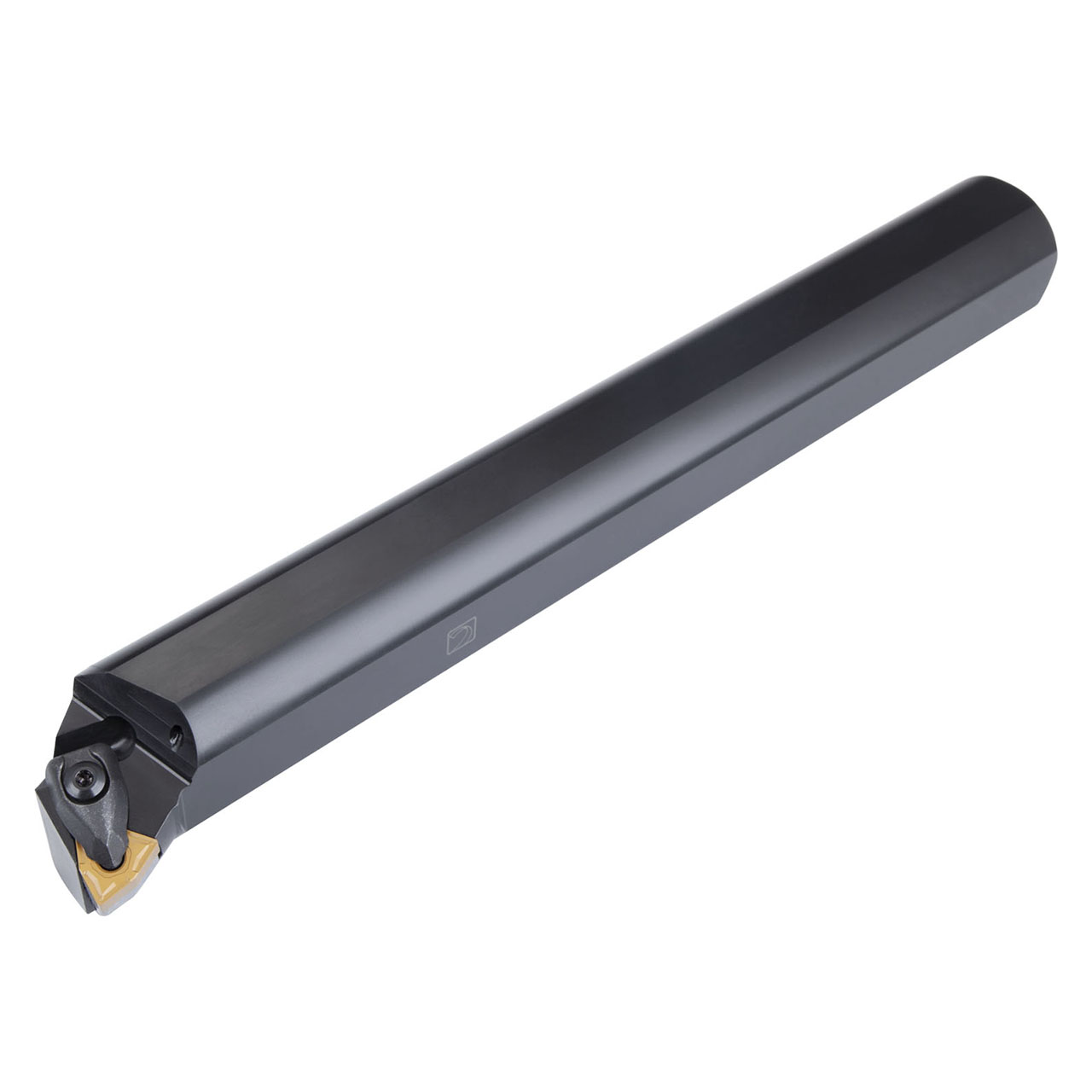

Pramet A25T-DWLNR 06 | 300 mm Functional Length x 23 mm Shank Height Indexable Turning Toolholder

$258.40
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Height (Inch):
29/32"
Shank Height (Decimal Inch):
0.9100"
Shank Height (mm):
23mm
interval quantity:
1
SKU:
23144168
Weight:
34.15 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Double clamp boring bar for holding a 80° trigon negative insert with an inscribed circle diameter of 9.525 mm, 4.76 mm thick (ISO designation WN.. 0604.. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 25 mm diameter x 300 mm long for taper boring and longitudinal boring with and without shoulder.

Product Specifications
EDP Number7028484
Functional Height (mm)11.5 mm
Functional Width (mm)
Coolant Supply Property1
Orthogonal Rake Angle-6
Inclination Angle-14
Maximum Axial Groove Outside Diameter (mm)
Connection Diameter (mm)25 mm
Connection Diameter (Inch)0.984"
Shank Height (mm)23 mm
Minimum Bore Diameter (mm)
Functional Length (mm)300 mm
Head Length (mm)31 mm
Clamping Type CodeSystem D
Direction of ToolRight
