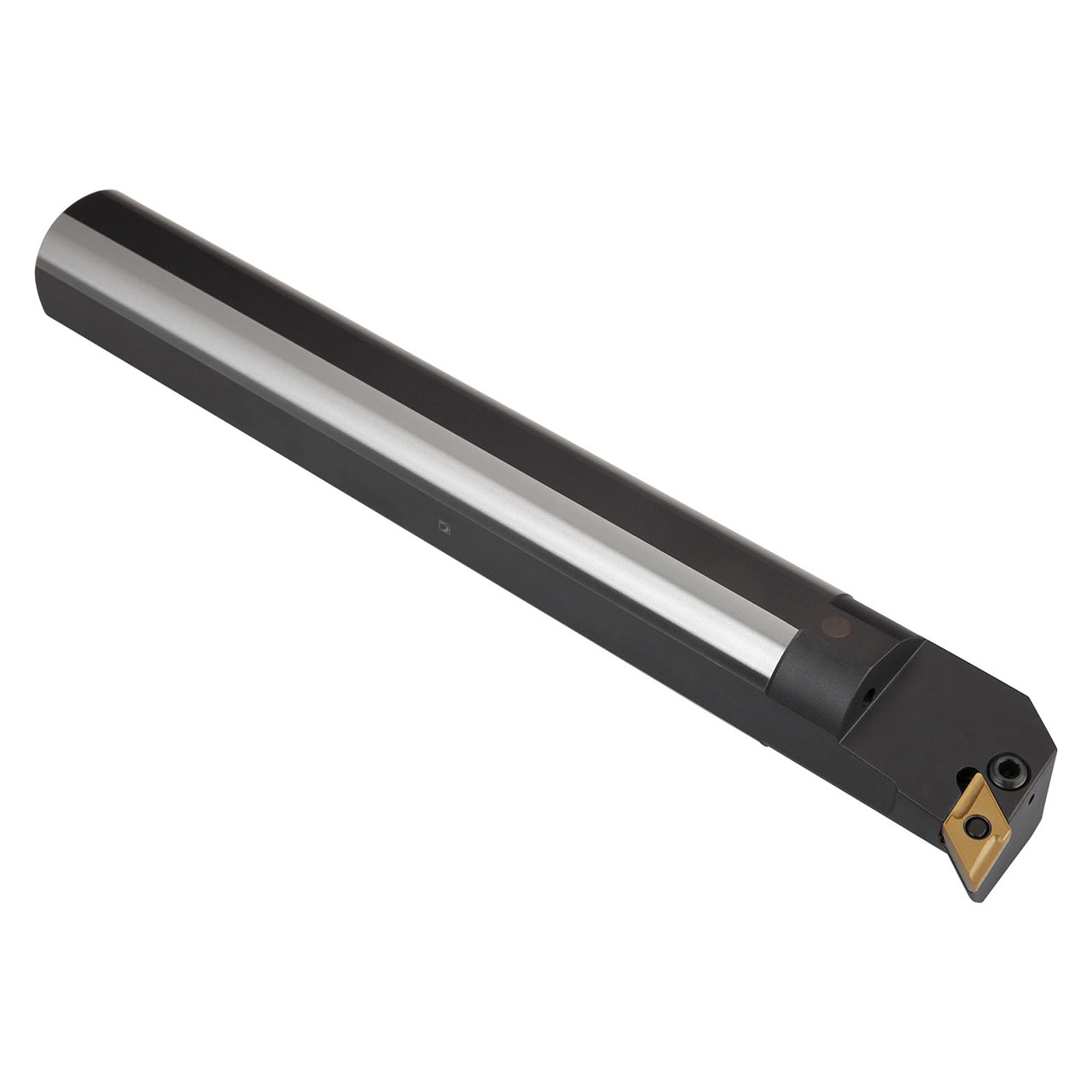

Lever lock boring bar for holding a 55° rhombus negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation DN.. 1504.. ), left hand 93° end cutting with off-set shank, steel with coolant hole, 60 mm diameter x 400 mm long for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6757366 |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -12 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 60 mm |
| Connection Diameter (Inch) | 2.362" |
| Shank Height (mm) | 57 mm |
| Shank Width (mm) | 58.5 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 400 mm |
| Direction of Tool | Left |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
2-19/64"
Shank Width (Decimal Inch):
2.3000"
Shank Width (mm):
58.5mm
Shank Height (Inch):
2-1/4"
Shank Height (Decimal Inch):
2.2400"
Shank Height (mm):
57mm
