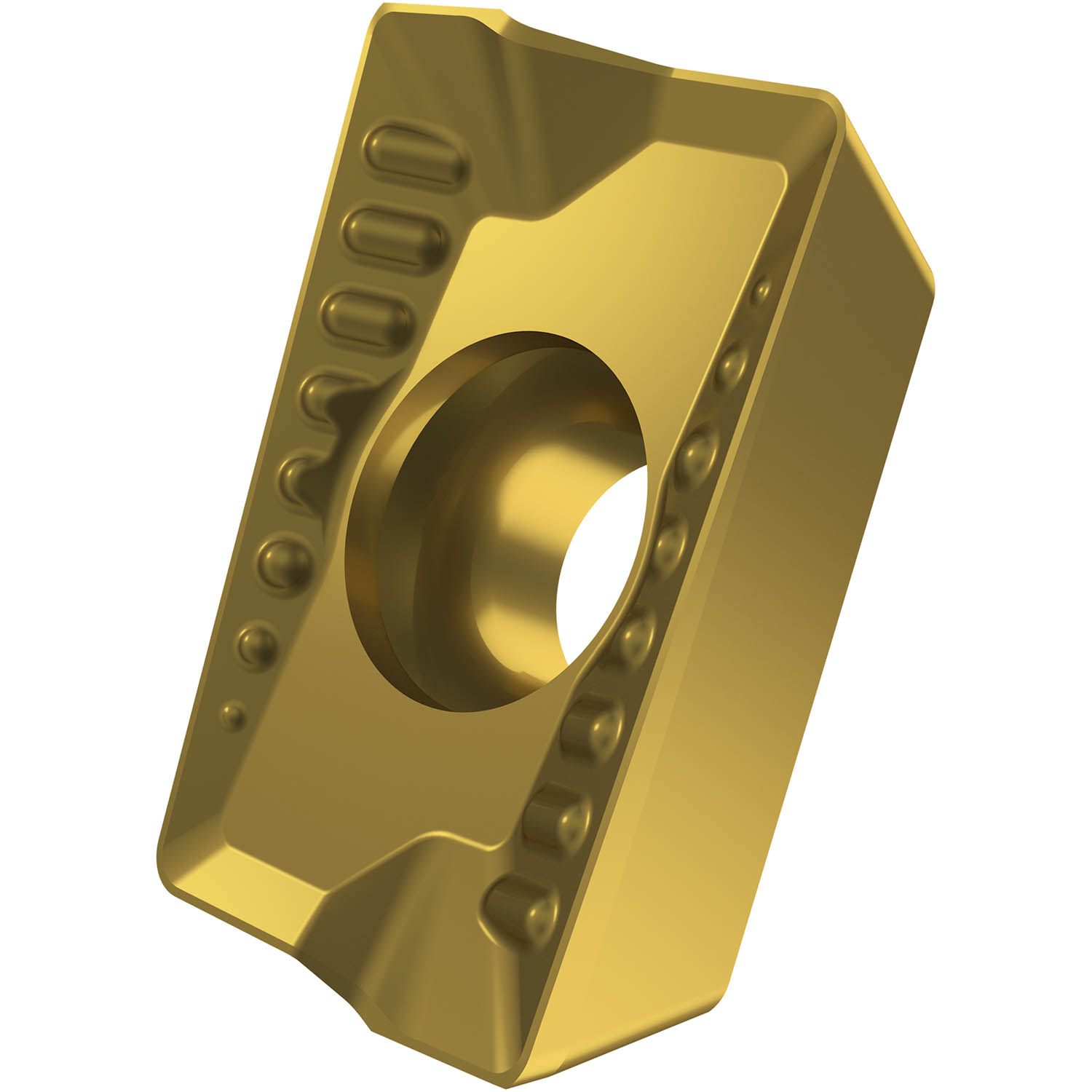

Single-sided milling insert ADKT 1505 with chip-breakers, 85 Degree parallelogram for a maximum depth of cut of 13.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-K and M geometry with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel.
Product Specifications
| EDP Number | 6800798 |
| Maximum Depth of Cut (mm) | 13 mm |
| Max Depth of Cut (Inch) | 0.512" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.4 mm |
| Fixing Hole Diameter (Inch) | 0.173" |
| Cutting Edge Length (mm) | 15.55 mm |
| Cutting Edge Length (Inch) | 0.612" |
| Insert Width (mm) | 9.525 mm |
| Insert Width (Inch) | 0.375" |
| Insert Thickness (mm) | 5.6 mm |
| Insert Thickness (Inch) | 0.22" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | PVD |
| Coating | M8340 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
10
