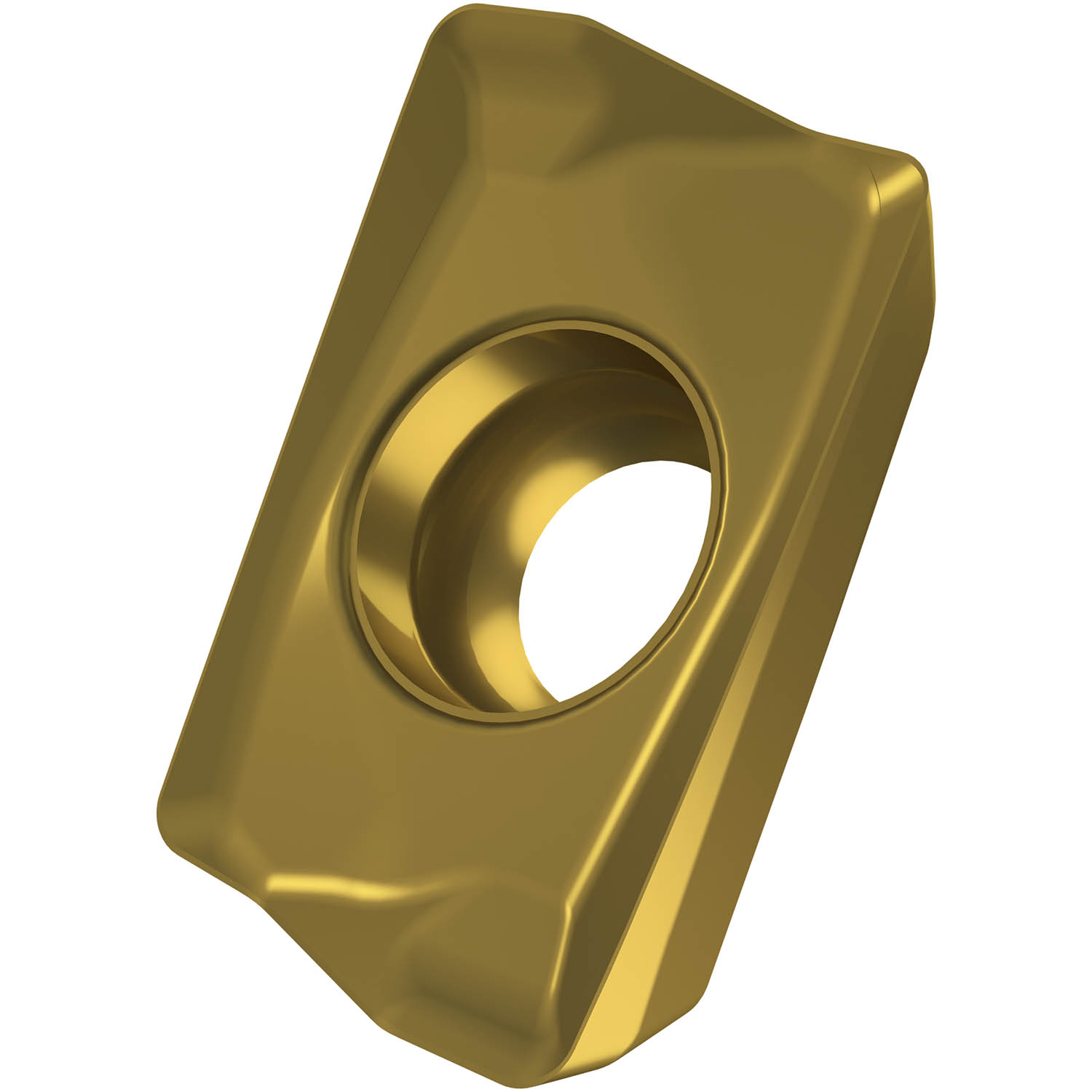

Single-sided milling insert ADMX 0702, 85° parallelogram for a maximum depth of cut of 5.0 mm, with 0.4 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and F geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with shoulder mills SAD07D.
Product Specifications
| EDP Number | 7799521 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.2 mm |
| Fixing Hole Diameter (Inch) | 0.087" |
| Cutting Edge Length (mm) | 6.95 mm |
| Cutting Edge Length (Inch) | 0.274" |
| Insert Width (mm) | 4.482 mm |
| Insert Width (Inch) | 0.176" |
| Insert Thickness (mm) | 2.48 mm |
| Insert Thickness (Inch) | 0.098" |
| Corner Radius (mm) | 0.4 mm |
| Corner Radius (Inch) | 0.016" |
| Coating Process | PVD |
| Coating | M6330 |
| Surface Color | Gold |
