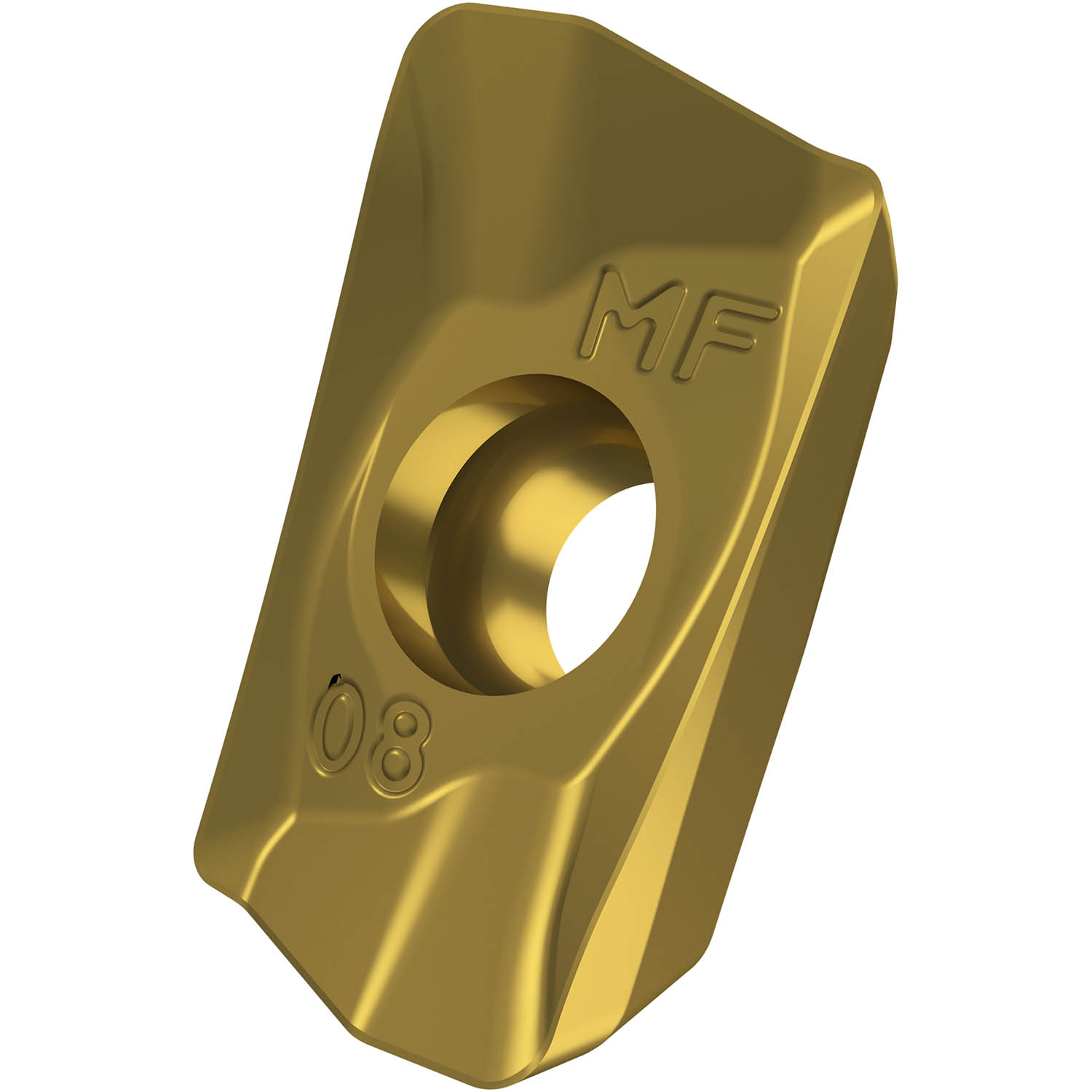

Single-sided milling insert ADMX 11T3, 85° parallelogram for a maximum depth of cut of 9.0 mm, with 0.4 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and MF geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade ranges M20-M35 and S10-S30 for machining of stainless-steel and superalloy with shoulder mills SAD11E or shoulder mills with extended flute J(T)-SAD11E.
Product Specifications
| EDP Number | 6925505 |
| Maximum Depth of Cut (mm) | 9 mm |
| Max Depth of Cut (Inch) | 0.354" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.9 mm |
| Fixing Hole Diameter (Inch) | 0.114" |
| Cutting Edge Length (mm) | 11 mm |
| Cutting Edge Length (Inch) | 0.433" |
| Insert Width (mm) | 6.53 mm |
| Insert Width (Inch) | 0.257" |
| Insert Thickness (mm) | 3.97 mm |
| Insert Thickness (Inch) | 0.156" |
| Corner Radius (mm) | 0.4 mm |
| Corner Radius (Inch) | 0.016" |
| Coating Process | PVD |
| Coating | M6330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.2 mm |
| Min Depth of Cut (Inch) | 0.008" |
