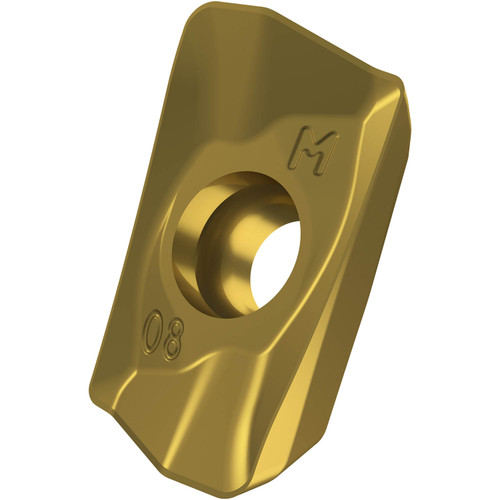

Pramet ADMX 11T330SR-M:M8340 | 0.114" Diameter x 0.156" Thickness Milling Insert

$17.05 $11.98
(You save $5.07)
Brand:
Pramet
interval quantity:
10
SKU:
23151116
UPC:
Weight:
0.07 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Single-sided milling insert ADMX 11T3, 85 Degree parallelogram for a maximum depth of cut of 9.0 mm, with 3.0 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with shoulder mills SAD11E or shoulder mills with extended flute J(T)-SAD11E.

Product Specifications
EDP Number6800774
Maximum Depth of Cut (mm)9 mm
Max Depth of Cut (Inch)0.354"
Coating Property1
Fixing Hole Diameter (mm)2.9 mm
Fixing Hole Diameter (Inch)0.114"
Cutting Edge Length (mm)11 mm
Cutting Edge Length (Inch)0.433"
Insert Width (mm)6.53 mm
Insert Width (Inch)0.257"
Insert Thickness (mm)3.97 mm
Insert Thickness (Inch)0.156"
Corner Radius (mm)3 mm
Corner Radius (Inch)0.118"
Coating ProcessPVD
CoatingM8340
Surface ColorGold
Min Depth of Cut (mm)0.2 mm
Min Depth of Cut (Inch)0.008"
Country of originCzech Republic
