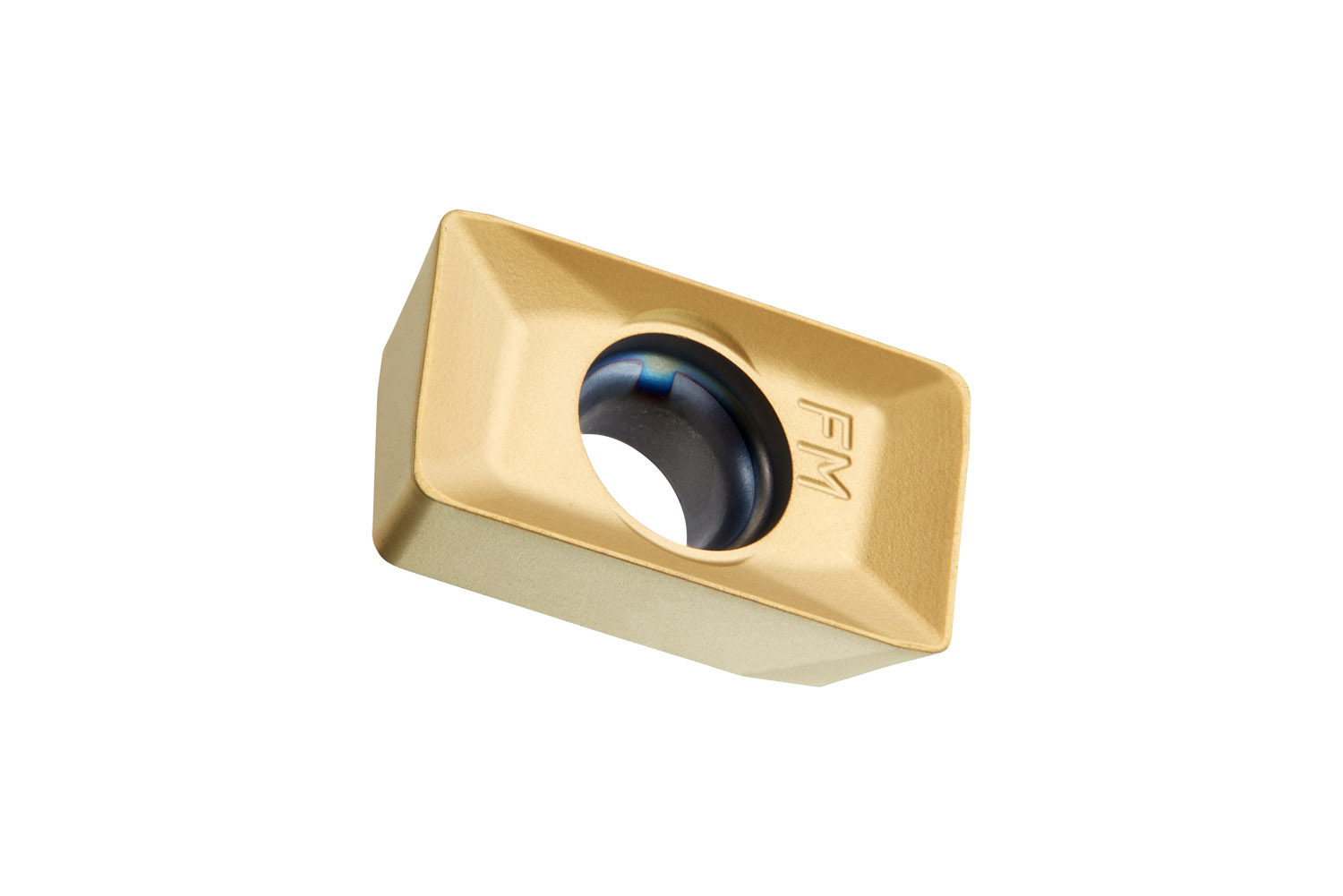

Single-sided milling insert APMT 1604 with chip-breakers, 85° parallelogram for a maximum depth of cut of 13.0 mm, with an indexing accuracy according to ISO-tolerance class-M and FM geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel.
Product Specifications
| EDP Number | 7447834 |
| Maximum Depth of Cut (mm) | 13 mm |
| Max Depth of Cut (Inch) | 0.512" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.5 mm |
| Fixing Hole Diameter (Inch) | 0.177" |
| Cutting Edge Length (mm) | 17 mm |
| Cutting Edge Length (Inch) | 0.669" |
| Insert Width (mm) | 9.6 mm |
| Insert Width (Inch) | 0.378" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.6 mm |
| Min Depth of Cut (Inch) | 0.024" |
